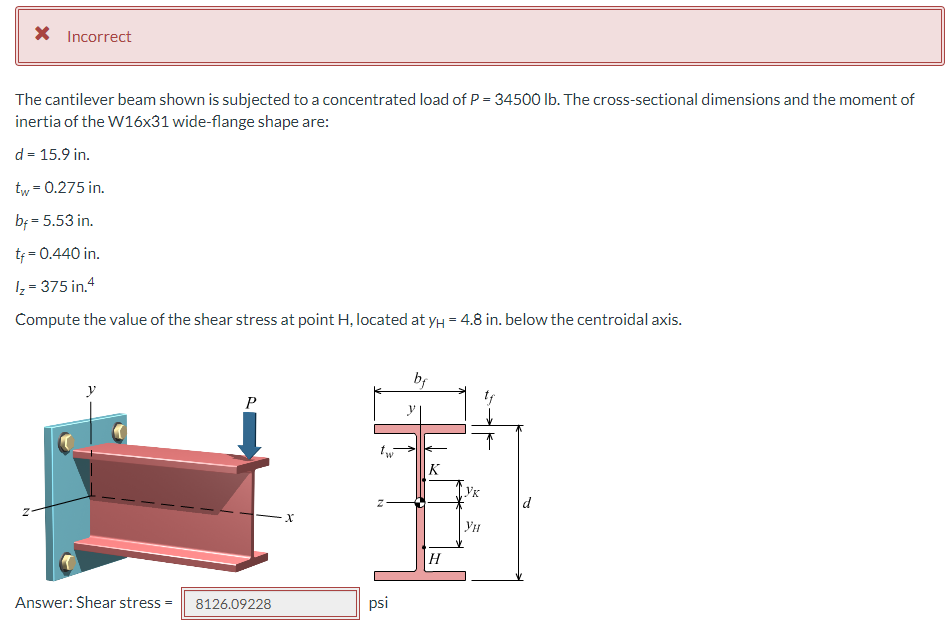

X Incorrect The cantilever beam shown is subjected to a concentrated load of P= 34500 lb. The cross-sectional dimensions and the moment of inertia of the W16x31 wide-flange shape are: d = 15.9 in. tw = 0.275 in. bp=5.53 in. tp = 0.440 in. Iz = 375 in.4 Compute the value of the shear stress at point H, located at yn = 4.8 in. below the centroidal axis. bf Р K YK d X Ун H Answer: Shear stress = 8126.09228 psi
