An axial load Pis supported by the short steel column shown in the figure. The column has a cross-sectional area of 13,7

Post by answerhappygod »

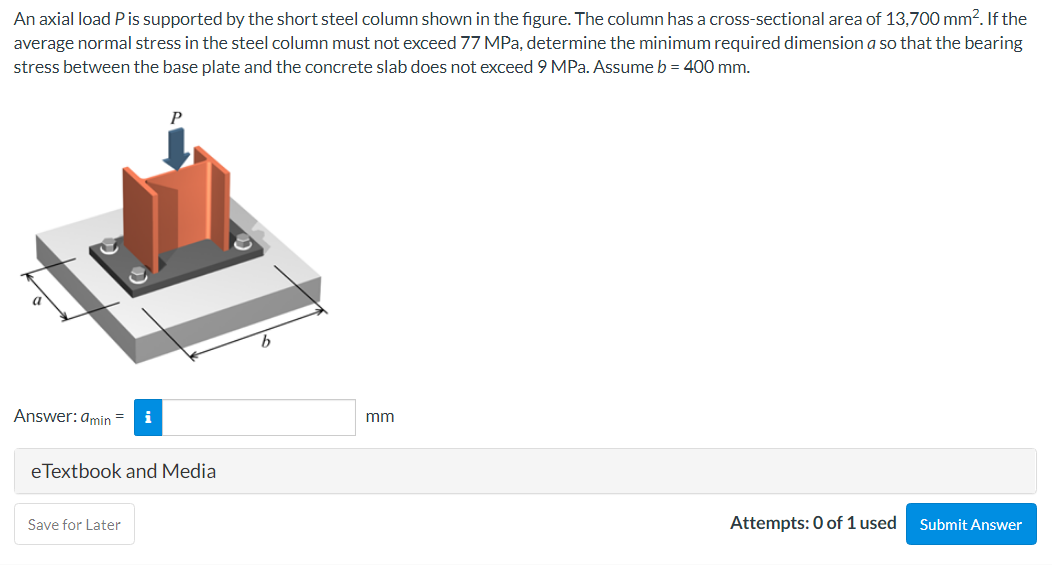

An Axial Load Pis Supported By The Short Steel Column Shown In The Figure The Column Has A Cross Sectional Area Of 13 7 1
An Axial Load Pis Supported By The Short Steel Column Shown In The Figure The Column Has A Cross Sectional Area Of 13 7 1 (62.46 KiB) Viewed 12 times
An axial load Pis supported by the short steel column shown in the figure. The column has a cross-sectional area of 13,700 mm2. If the average normal stress in the steel column must not exceed 77 MPa, determine the minimum required dimension a so that the bearing stress between the base plate and the concrete slab does not exceed 9 MPa. Assume b = 400 mm. Answer: Amin i mm e Textbook and Media Save for Later Attempts: 0 of 1 used Submit Answer
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
