The rectangular bar is connected to the support bracket with a circular pin, as shown in the figure. The bar width is w=

Post by answerhappygod »

The Rectangular Bar Is Connected To The Support Bracket With A Circular Pin As Shown In The Figure The Bar Width Is W 1
The Rectangular Bar Is Connected To The Support Bracket With A Circular Pin As Shown In The Figure The Bar Width Is W 1 (48.64 KiB) Viewed 10 times

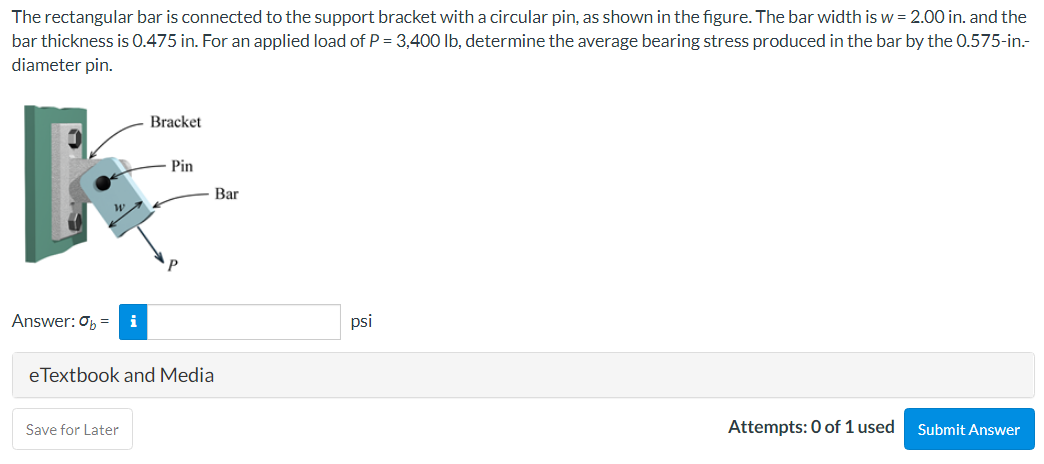

The rectangular bar is connected to the support bracket with a circular pin, as shown in the figure. The bar width is w= 2.00 in, and the bar thickness is 0.475 in. For an applied load of P= 3,400 lb, determine the average bearing stress produced in the bar by the 0.575-in.- diameter pin. Bracket Pin K Bar Answer: Ob = psi e Textbook and Media Save for Later Attempts: 0 of 1 used Submit Answer
