Problem IV. (30 Points) Water at 15°C flows from an open tank through a horizontal galvanized iron pipe. The pipe, with

Post by answerhappygod »

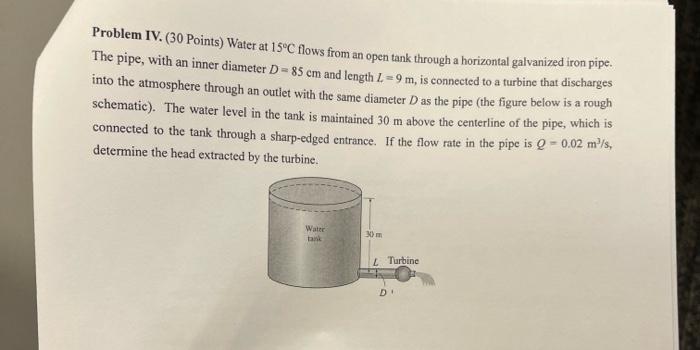

Problem Iv 30 Points Water At 15 C Flows From An Open Tank Through A Horizontal Galvanized Iron Pipe The Pipe With 1
Problem Iv 30 Points Water At 15 C Flows From An Open Tank Through A Horizontal Galvanized Iron Pipe The Pipe With 1 (26.6 KiB) Viewed 12 times
Problem IV. (30 Points) Water at 15°C flows from an open tank through a horizontal galvanized iron pipe. The pipe, with an inner diameter D - 85 cm and length 1. = 9 m, is connected to a turbine that discharges into the atmosphere through an outlet with the same diameter D as the pipe (the figure below is a rough schematic). The water level in the tank is maintained 30 m above the centerline of the pipe, which is connected to the tank through a sharp-edged entrance. If the flow rate in the pipe is 9 -0.02 m%s, determine the head extracted by the turbine. Wa 30 L Turbine D'
