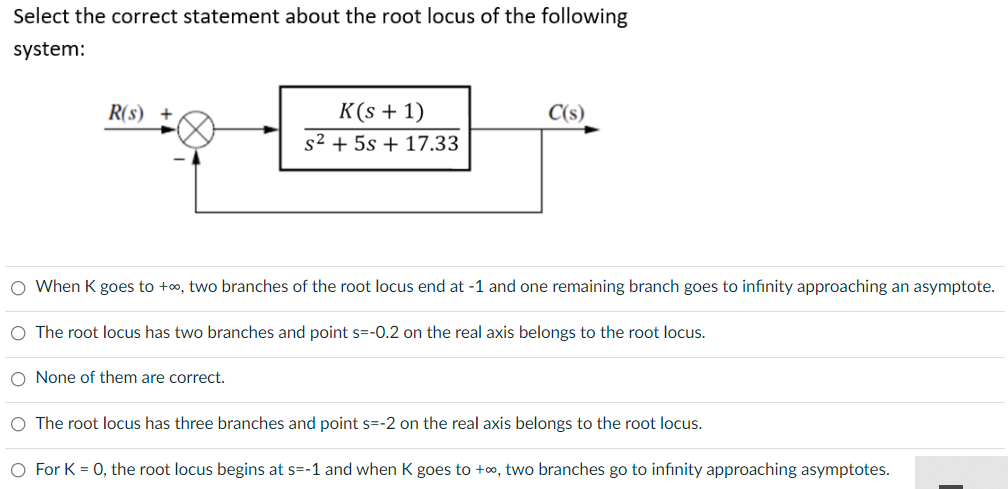

Select the correct statement about the root locus of the following system: R(s) + C(s) K(s + 1) S2 + 5s + 17.33 When K g

[answerhappygod]

Select The Correct Statement About The Root Locus Of The Following System R S C S K S 1 S2 5s 17 33 When K G 1 (60.59 KiB) Viewed 10 times

Select the correct statement about the root locus of the following system: R(s) + C(s) K(s + 1) S2 + 5s + 17.33 When K goes to +00, two branches of the root locus end at -1 and one remaining branch goes to infinity approaching an asymptote. The root locus has two branches and point s=-0.2 on the real axis belongs to the root locus. O None of them are correct. The root locus has three branches and point s=-2 on the real axis belongs to the root locus. For K = 0, the root locus begins at s=-1 and when K goes to +00, two branches go to infinity approaching asymptotes.
