15. (6 points) The bar is made of annealed titanium alloy. Considering stress concentration, the minimum possible value

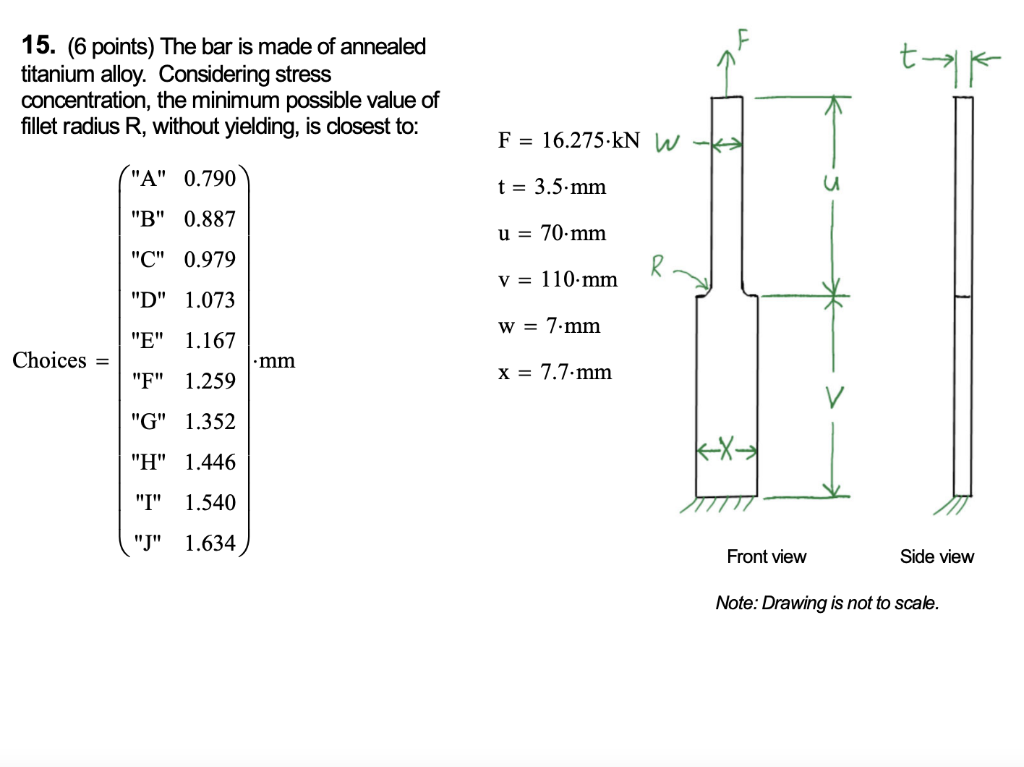

15. (6 points) The bar is made of annealed titanium alloy. Considering stress concentration, the minimum possible value of fillet radius R, without yielding, is closest to: 테 서 F = 16.275.kN W "A" 0.790 t = 3.5 mm u "B" 0.887 u = 70 mm "C" 0.979 V = 110 mm "D" 1.073 W = 7.mm "E" 1.167 Choices = .mm "F" 1.259 x = 7.7 mm v "G" 1.352 KX- "H" 1.446 "I" 1.540 "J" 1.634 Front view Side view Note: Drawing is not to scale.
