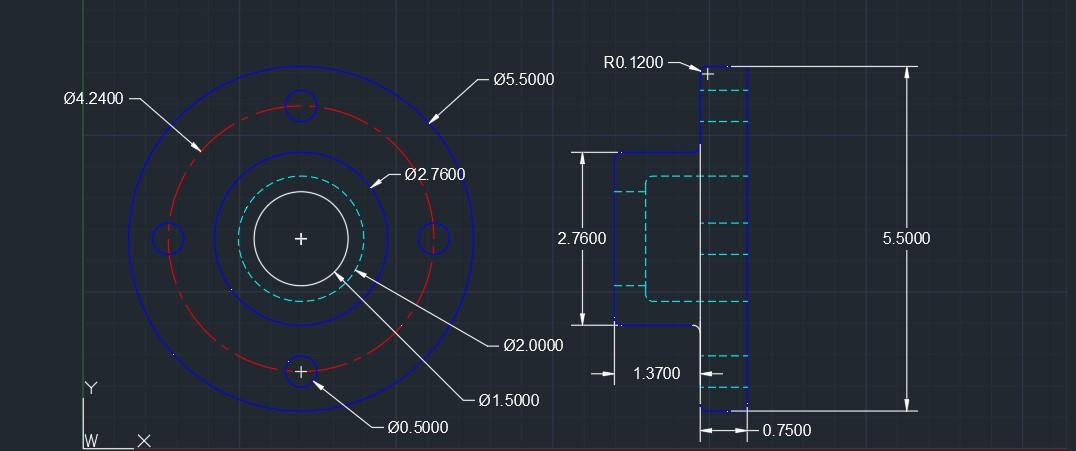

- Ro 1200 05 5000 04 2400 02 7600 2 7600 5 5000 O2 0000 1 3700 01 5000 80 5000 0 7500 1 (37.99 KiB) Viewed 10 times
1. Open the BEARING drawing
2. Set up four more Layers
Layer Name Layer Color Layer Linetype
a. Dimensions Green Continuous
b. Notes Blue Continuous
c. Title Block Magenta Continuous
d. Center_lines Red Center line2
e. Section Lines White Continuous
f. Cutting Plane line Dark Gray Phantom
3. Make the necessary changes to the orthographic views to make it
a full section view drawing.
4. Set up a New Dimensioning style and keep the Standard
unchanged.
a. Dimension style name DIM3PLACE
b. Set the decimals to three place decimals
c. Turn off the leading zeros
5. Add the Center lines as needed.
6. Dimension the drawing using industry standard practices.
7. Insert the Title block on the title block layer at insertion
point 0,0.
a. Drawing name: BEARING
b. Drawing number: Finale
c. Drawn by: your name
d. Scale: 1:1
e. Date: today’s date
(All step by step) Thank you.
(I already added the dimensions to the drawing, feel free to add
any missing ones.)
RO. 1200 05.5000 04.2400 02.7600 2.7600 5.5000 Ø2.0000 1.3700 01.5000 80.5000 0.7500
