Consider the following unity feedback system: R(S) + C(s) 6 s(s + 3) Select the correct percentage of overshoot to a uni

Post by answerhappygod »

Consider The Following Unity Feedback System R S C S 6 S S 3 Select The Correct Percentage Of Overshoot To A Uni 1
Consider The Following Unity Feedback System R S C S 6 S S 3 Select The Correct Percentage Of Overshoot To A Uni 1 (39.51 KiB) Viewed 16 times

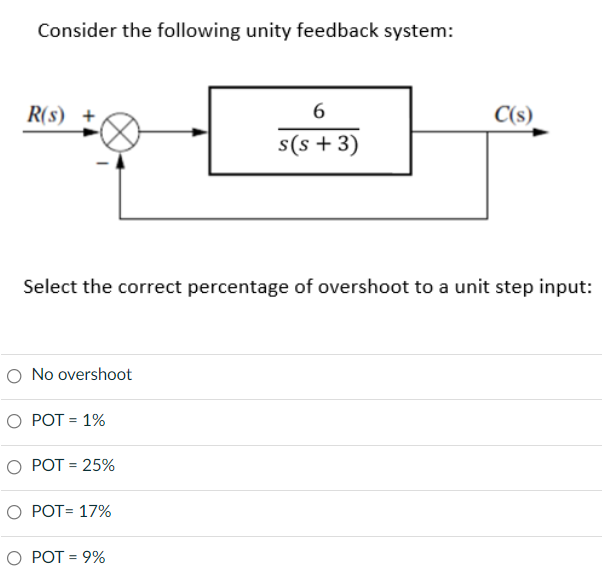

Consider the following unity feedback system: R(S) + C(s) 6 s(s + 3) Select the correct percentage of overshoot to a unit step input: O No overshoot O POT = 1% O POT = 25% O POT= 17% O POT = 9%
