A beam is given below, with point loads as well as loads.
distributed, develop the calculation by the method of equations,
leave evidence of growth. You need to calculate the following: 1
Cutting diagram (6 points) 2 Moment diagram (6 points) 3 Elastic (6
points) 4 Maximum compression stress (6 points) 5 Maximum shear
stress (6 points)

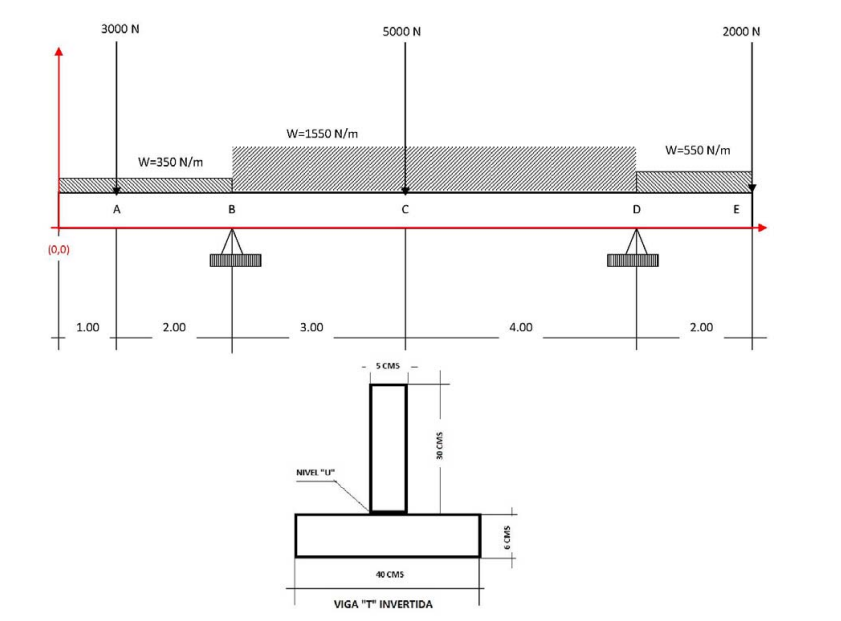

A Beam Is Given Below With Point Loads As Well As Loads Distributed Develop The Calculation By The Method Of Equation 1 (92.42 KiB) Viewed 10 times
3000 N 5000 N 2000 N W=1550 N/m W=550 N/m W=350 N/m A B с D E E (0,0) 1.00 2.00 3.00 4.00 2.00 + 5CMS 30 CMS NIVELUT 6 CMS 40 CMS VIGA "T" INVERTIDA
