The operation of the following true-false table is not linear as shown on the Figure 1. We need two layers of TLU's to i

[answerhappygod]

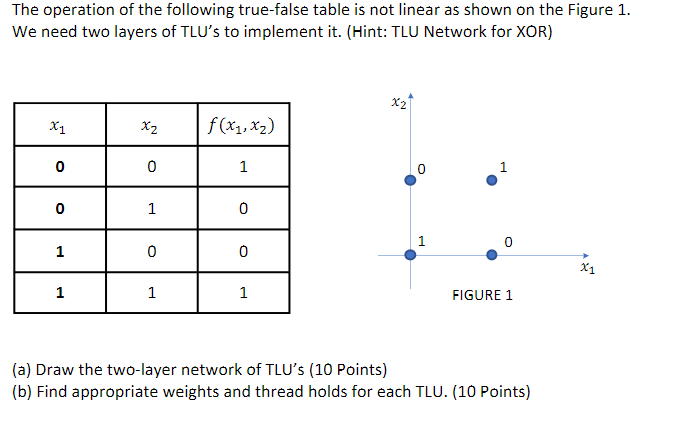

The Operation Of The Following True False Table Is Not Linear As Shown On The Figure 1 We Need Two Layers Of Tlu S To I 1 (18.61 KiB) Viewed 11 times

The operation of the following true-false table is not linear as shown on the Figure 1. We need two layers of TLU's to implement it. (Hint: TLU Network for XOR) X21 X1 X2 f(x1, x2) 0 0 1 0 1 o o 1 0 1 1 0 0 X1 1 1 1 1 FIGURE 1 (a) Draw the two-layer network of TLU'S (10 Points) (b) Find appropriate weights and thread holds for each TLU. (10 Points)
