and the max displacement
Write the answer for the rotation using four decimal places
and the offset using two decimal places
E = 200GP
I= 4.61 x 10^7 mm^4
- Determine The Maximum Rotation Max And The Max Displacement Write The Answer For The Rotation Using Four Decimal Plac 1 (100.33 KiB) Viewed 11 times
- Determine The Maximum Rotation Max And The Max Displacement Write The Answer For The Rotation Using Four Decimal Plac 2 (100.33 KiB) Viewed 11 times
- Determine The Maximum Rotation Max And The Max Displacement Write The Answer For The Rotation Using Four Decimal Plac 3 (89.67 KiB) Viewed 11 times

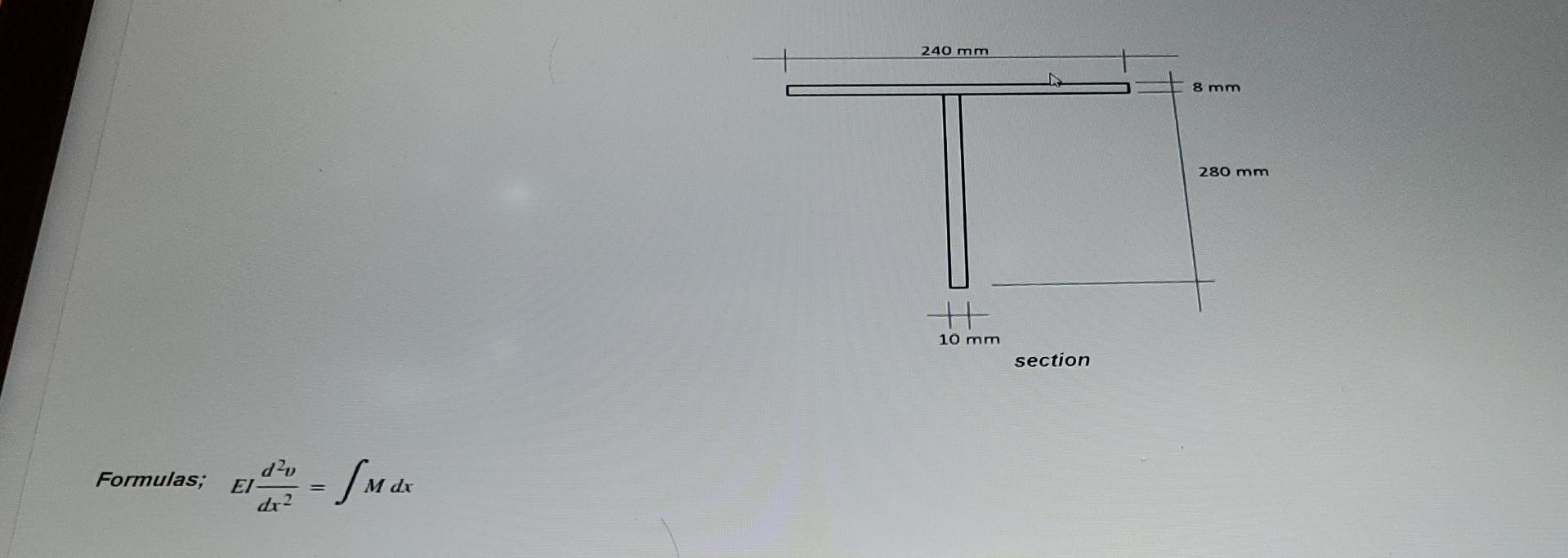

240 mm 8 mm 280 mm + 10 mm section Formulas; ET- do a = 1 mer

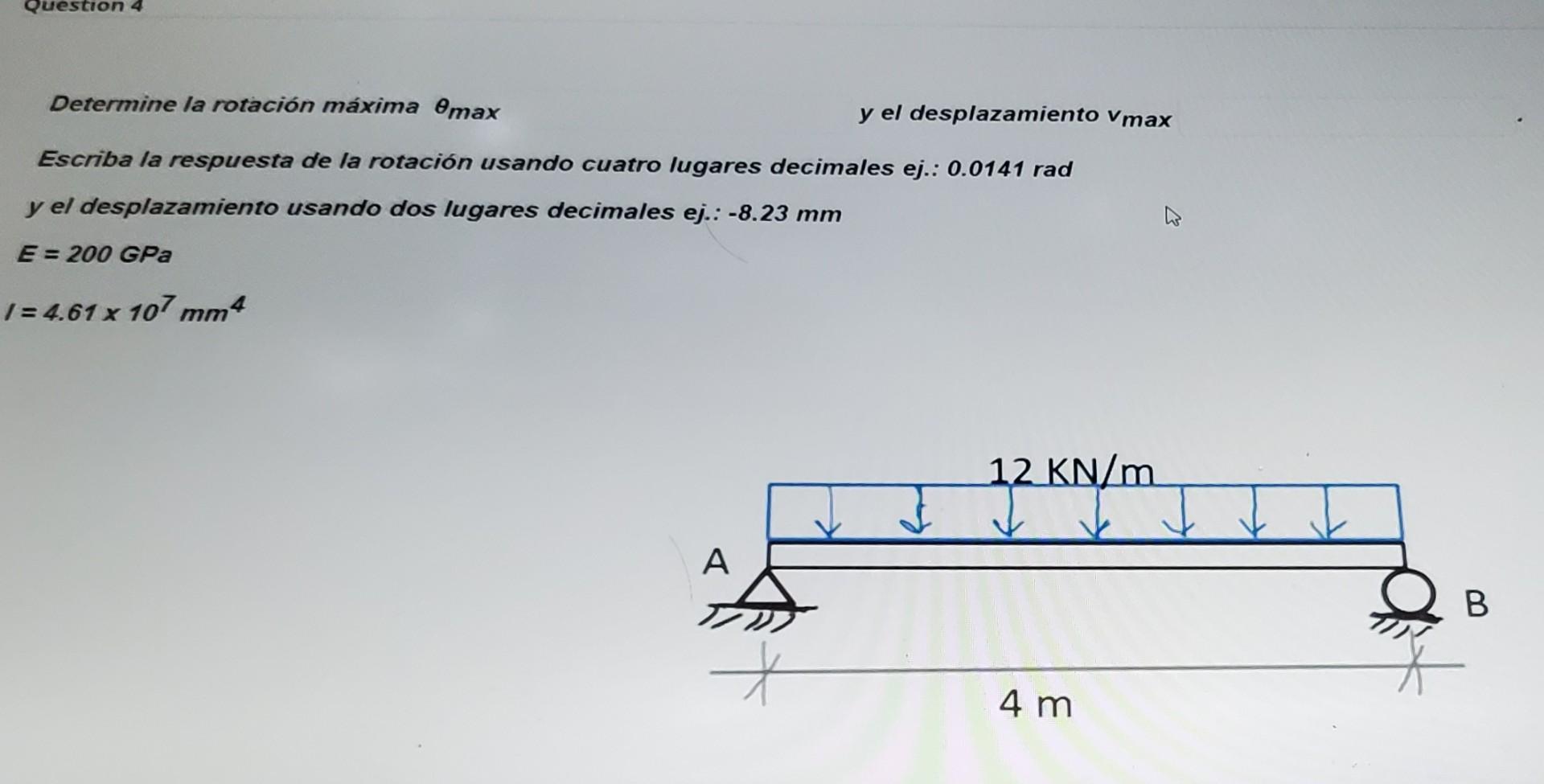

Question 4 Determine la rotación máxima Omax y el desplazamiento Vmax Escriba la respuesta de la rotación usando cuatro lugares decimales ej.: 0.0141 rad y el desplazamiento usando dos lugares decimales ej.: -8.23 mm E = 200 GPa 1 = 4.61 x 107 mm 4 12 KN/m А B t 4 m
