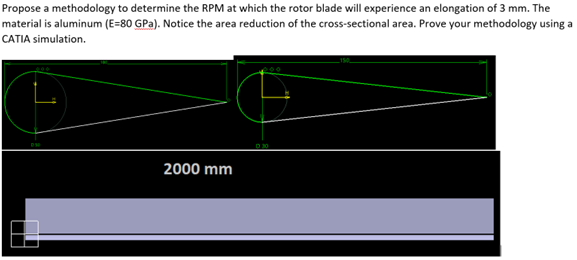

Propose a methodology to determine the RPM at which the rotor
blade will experience an elongation of 3 mm. The material is
aluminum (E=80 GPa). Notice the area reduction of the
cross-sectional area. Prove your methodology using a CATIA
simulation.
Propose a methodology to determine the RPM at which the rotor blade will experience an elongation of 3 mm. The material is aluminum (E=80 GPa). Notice the area reduction of the cross-sectional area. Prove your methodology using a CATIA simulation. D 2000 mm
