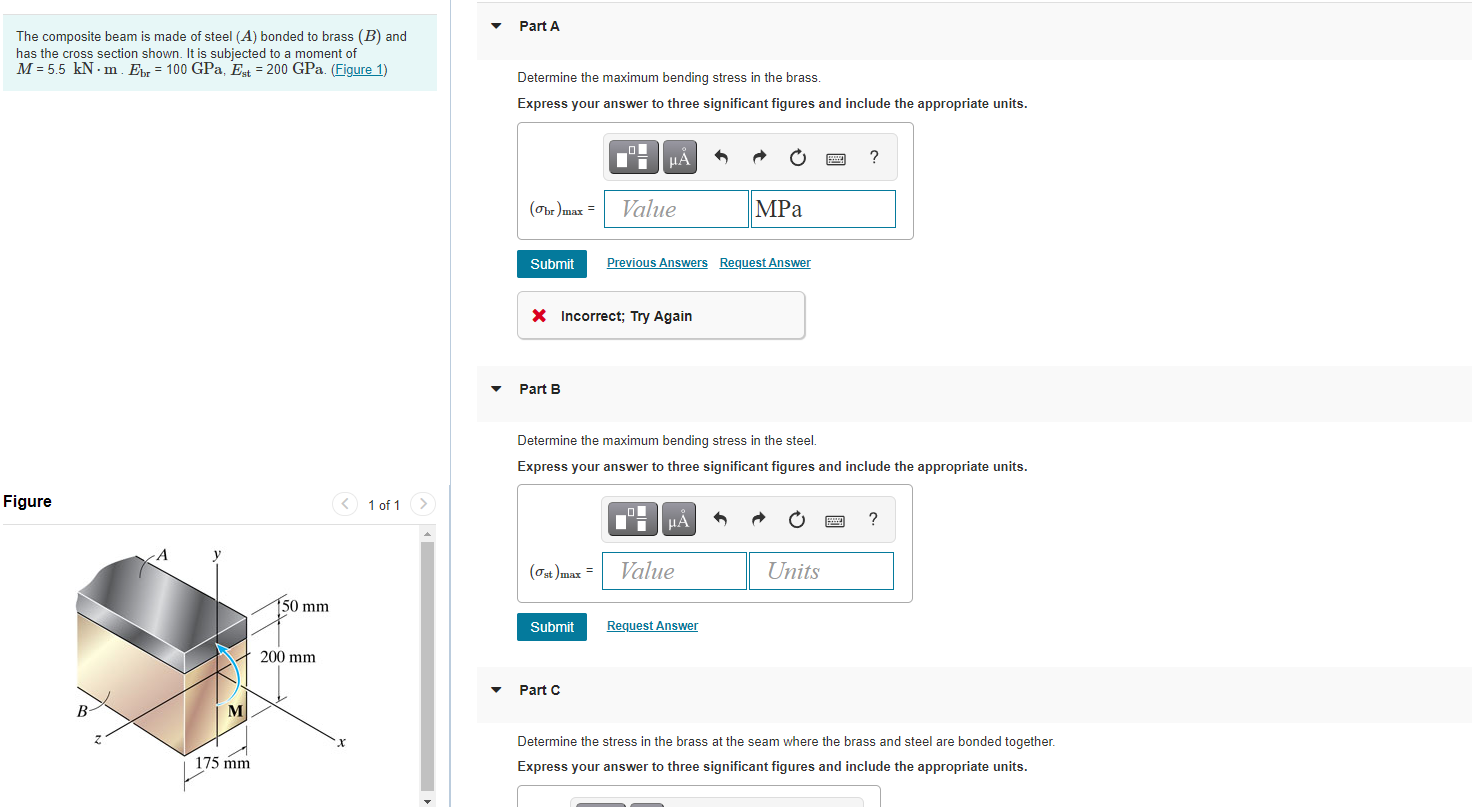

Part A The composite beam is made of steel (A) bonded to brass (B) and has the cross section shown. It is subjected to a moment of M = 5.5 kN.m. Ebr = 100 GPa, Est = 200 GPa. (Figure 1) Determine the maximum bending stress in the brass. Express your answer to three significant figures and include the appropriate units. ol Di UA (our ) max = Value MPa Submit Previous Answers Request Answer X Incorrect; Try Again Part B Determine the maximum bending stress in the steel. Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > μΑ ? (ost)max = Value Units 150 mm Submit Request Answer 200 mm Part C B M 175 mm Determine the stress in the brass at the seam where the brass and steel are bonded together. Express your answer to three significant figures and include the appropriate units.
Part Determine the stress in the brass at the seam where the brass and steel are bonded together. Express your answer to three significant figures and include the appropriate units. μΑ ? Obr Value Units Submit Request Answer Part D Determine the stress in the steel at the seam where the brass and steel are bonded together. Express your answer to three significant figures and include the appropriate units. НА ? Ost = Value Units Submit Request Answer
