Problem #1) (20 points) {NOTE: 1" Draw FBD (8 point)} A foot pedal for a musical instrument is modeled by the sketch in

[answerhappygod]

Problem 1 20 Points Note 1 Draw Fbd 8 Point A Foot Pedal For A Musical Instrument Is Modeled By The Sketch In 1 (57.61 KiB) Viewed 17 times

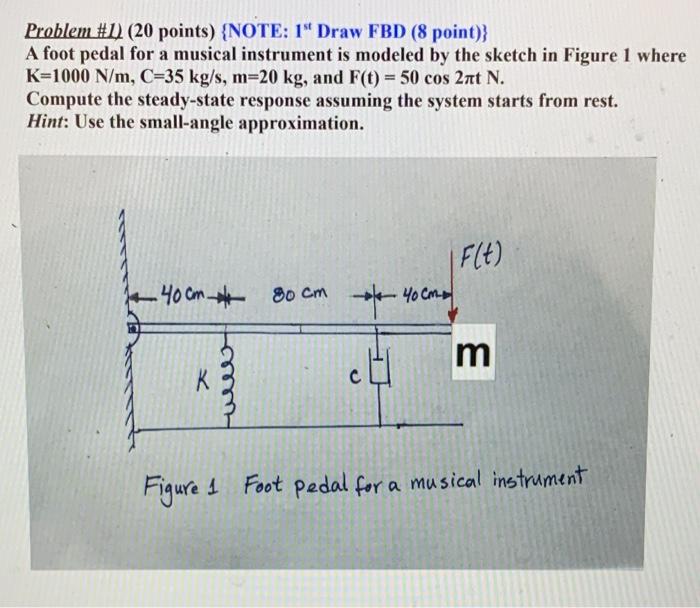

Problem #1) (20 points) {NOTE: 1" Draw FBD (8 point)} A foot pedal for a musical instrument is modeled by the sketch in Figure 1 where K=1000 N/m, C=35 kg/s, m=20 kg, and F(t) = 50 cos 2nt N. Compute the steady-state response assuming the system starts from rest. Hint: Use the small-angle approximation. IF(t) a 40cm 80cm e 40 cm m к с Figure 1 Foot Pedal for a musical instrument
