[25 Marks) Question 2 Figure Q2 below shows a continuous beam with the bending rigidity El being the same for all member

[answerhappygod]

25 Marks Question 2 Figure Q2 Below Shows A Continuous Beam With The Bending Rigidity El Being The Same For All Member 1 (37.03 KiB) Viewed 11 times

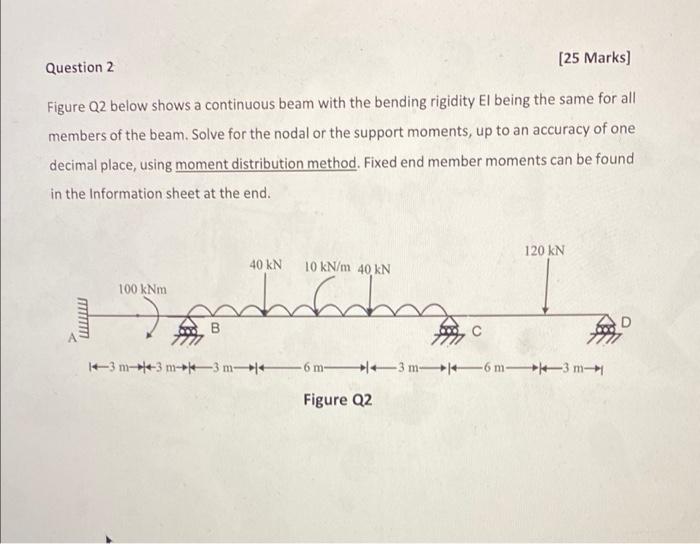

[25 Marks) Question 2 Figure Q2 below shows a continuous beam with the bending rigidity El being the same for all members of the beam. Solve for the nodal or the support moments, up to an accuracy of one decimal place, using moment distribution method. Fixed end member moments can be found in the Information sheet at the end. 120 KN 40 KN 10 kN/m 40 KN 100 kNm MITT dobb B 1-3m-3---3m-+ -6m- +3m-om-3m- Figure Q2
