Question 2 [25 marks) The continuous beam shown in Figure Q2 is fixed at Cand simply supported at A and B. Using the mom

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 2 [25 marks) The continuous beam shown in Figure Q2 is fixed at Cand simply supported at A and B. Using the mom

Post by answerhappygod »

Question 2 25 Marks The Continuous Beam Shown In Figure Q2 Is Fixed At Cand Simply Supported At A And B Using The Mom 1
Question 2 25 Marks The Continuous Beam Shown In Figure Q2 Is Fixed At Cand Simply Supported At A And B Using The Mom 1 (50.29 KiB) Viewed 18 times

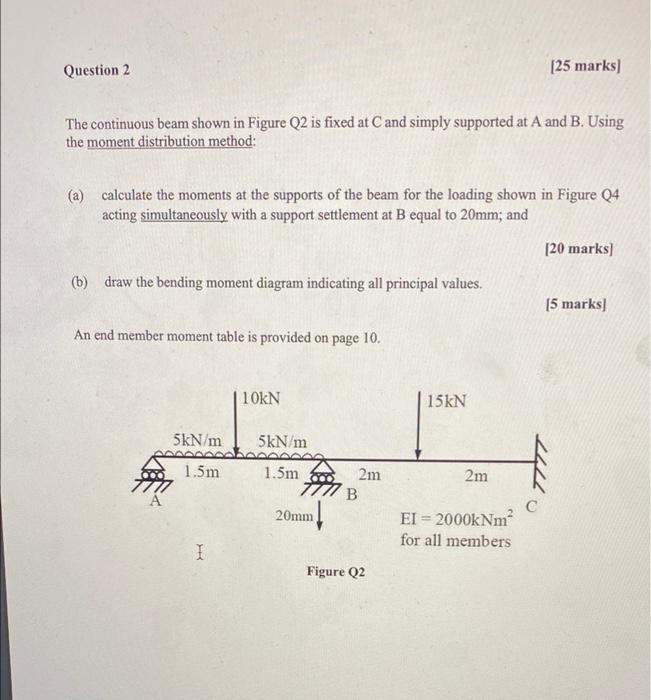

Question 2 [25 marks) The continuous beam shown in Figure Q2 is fixed at Cand simply supported at A and B. Using the moment distribution method: (a) calculate the moments at the supports of the beam for the loading shown in Figure Q4 acting simultaneously with a support settlement at B equal to 20mm; and [20 marks) (b) draw the bending moment diagram indicating all principal values. (5 marks) An end member moment table is provided on page 10. 10KN 15kN SkN/m SkN/m ना 1.5m 1.5m 2m 2m B С 20mm EI = 2000kNm? for all members I I Figure Q2
