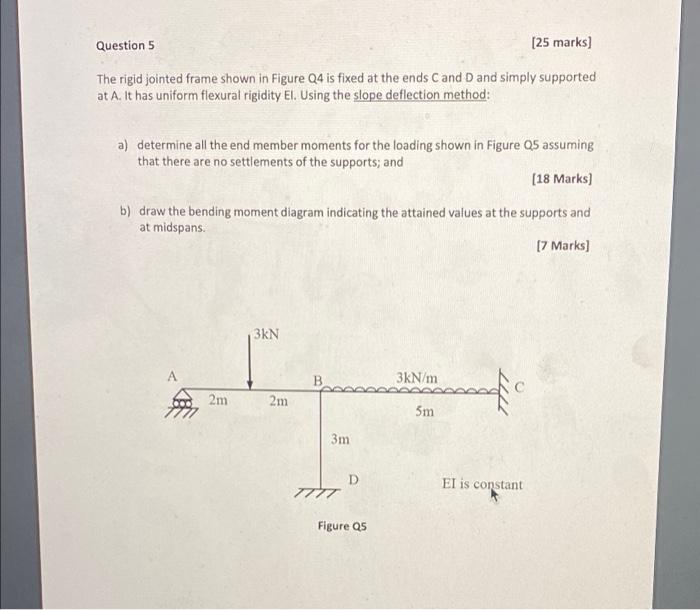

Question 5 [25 marks) The rigid jointed frame shown in Figure Q4 is fixed at the ends C and D and simply supported at A.

[answerhappygod]

Question 5 25 Marks The Rigid Jointed Frame Shown In Figure Q4 Is Fixed At The Ends C And D And Simply Supported At A 1 (43.73 KiB) Viewed 14 times

Question 5 [25 marks) The rigid jointed frame shown in Figure Q4 is fixed at the ends C and D and simply supported at A. It has uniform flexural rigidity El. Using the slope deflection method: a) determine all the end member moments for the loading shown in Figure 05 assuming that there are no settlements of the supports; and (18 Marks) b) draw the bending moment diagram indicating the attained values at the supports and at midspans. [7 Marks) 3kN A B 3kN/m 2m 2m 5m 3m D EI is constant 7777 Figure Q5
