A built-up shaft is designed to rotate at 420 rpm. The allowable shear stress of the material is Tallow = 145 MPa. di dz

Post by answerhappygod »

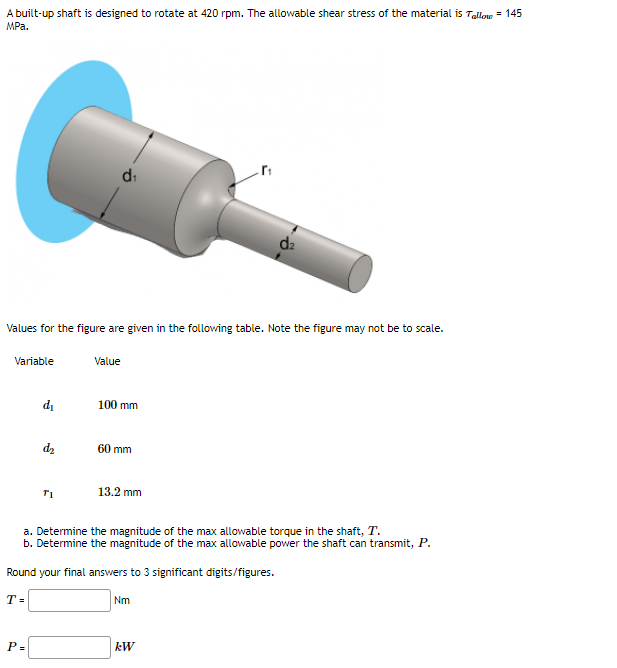

A Built Up Shaft Is Designed To Rotate At 420 Rpm The Allowable Shear Stress Of The Material Is Tallow 145 Mpa Di Dz 1
A Built Up Shaft Is Designed To Rotate At 420 Rpm The Allowable Shear Stress Of The Material Is Tallow 145 Mpa Di Dz 1 (70.09 KiB) Viewed 26 times
A built-up shaft is designed to rotate at 420 rpm. The allowable shear stress of the material is Tallow = 145 MPa. di dz Values for the figure are given in the following table. Note the figure may not be to scale. Variable Value d 100 mm d 60 mm T 13.2 mm a. Determine the magnitude of the max allowable torque in the shaft, T. b. Determine the magnitude of the max allowable power the shaft can transmit, P. Round your final answers to 3 significant digits/figures. Ts Nm Ps kW
