The built-up beam is subjected to a moment of M = 54 kNm. d2 de ds di M ds Values for the figure are given in the follow

[answerhappygod]

The Built Up Beam Is Subjected To A Moment Of M 54 Knm D2 De Ds Di M Ds Values For The Figure Are Given In The Follow 1 (79.94 KiB) Viewed 13 times

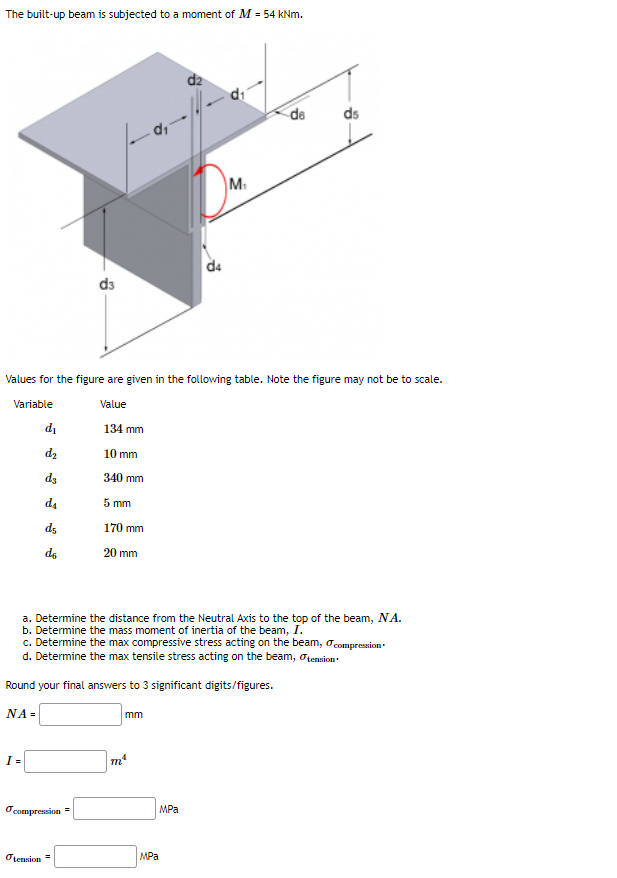

The built-up beam is subjected to a moment of M = 54 kNm. d2 de ds di M ds Values for the figure are given in the following table. Note the figure may not be to scale. Variable Value d dz ds 134 mm 10 mm 340 mm 5 mm 170 mm de ds do 20 mm a. Determine the distance from the Neutral Axis to the top of the beam, NA. b. Determine the mass moment of inertia of the beam, I. c. Determine the max compressive stress acting on the m, compression d. Determine the max tensile stress acting on the beam, tension Round your final answers to 3 significant digits/figures. NA mm = I = m" compression = MPa tension = | мРа
