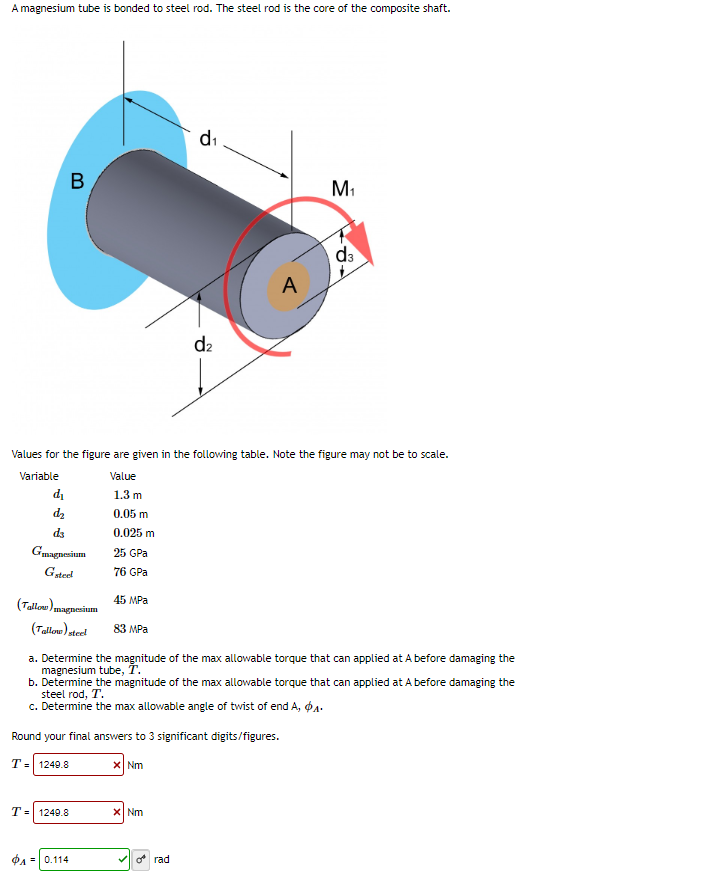

A magnesium tube is bonded to steel rod. The steel rod is the core of the composite shaft. di B. В M1 dz А dz Values for

[answerhappygod]

1 (114.39 KiB) Viewed 10 times

A magnesium tube is bonded to steel rod. The steel rod is the core of the composite shaft. di B. В M1 dz А dz Values for the figure are given in the following table. Note the figure may not be to scale. Variable Value d 1.3 m di 0.05 m ds 0.025 m Gagnesium 25 GPa Gsted 76 GPa (Tellom magnesium 45 MPa (Tellow) steel 83 MPa a. Determine the magnitude of the max allowable torque that can applied at A before damaging the magnesium tube, T. b. Determine the magnitude of the max allowable torque that can applied at A before damaging the steel rod, T. c. Determine the max allowable angle of twist of end A, . Round your final answers to 3 significant digits/figures. T. 1249.8 XNm T = 1249.8 XNm A = 0.114 rad
