Find the reactions at A and B (Als pinned and B is a roller support) for the Beam below Draw the shear and moment dlagra

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Find the reactions at A and B (Als pinned and B is a roller support) for the Beam below Draw the shear and moment dlagra

Post by answerhappygod »

Find The Reactions At A And B Als Pinned And B Is A Roller Support For The Beam Below Draw The Shear And Moment Dlagra 1
Find The Reactions At A And B Als Pinned And B Is A Roller Support For The Beam Below Draw The Shear And Moment Dlagra 1 (23.01 KiB) Viewed 9 times

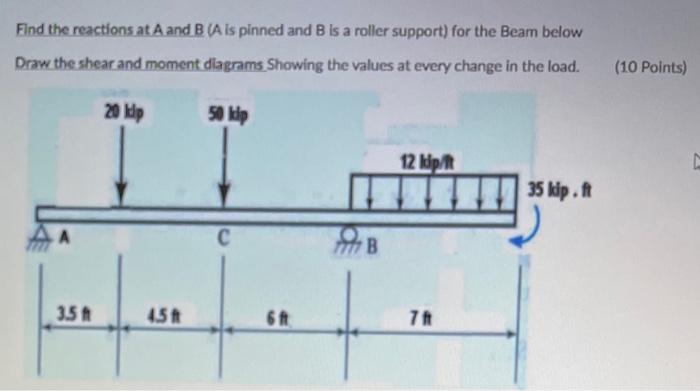

Find the reactions at A and B (Als pinned and B is a roller support) for the Beam below Draw the shear and moment dlagrams Showing the values at every change in the load. (10 Points) 20 klip 50 klip 12 kipr 35 kip. At с Я B 3.5 45 61 7
