This problem is based on the figure for Problem 7-75.
Determine the reactions (this also implies determining the
tension in the cable).
Draw the shear and bending moment diagrams for Beam ABC. Use
relations between
distributed load, shear and moments (Section 7.3). Specify which
parts of the
moment diagram are straight (or curved).
Remember that to draw the shear and moment diagrams for Beam ABC
you would
need to resolve all forces and reactions into components that are
parallel and
perpendicular to beam ABC.
Specify magnitude and location of maximum shear and bending
moments

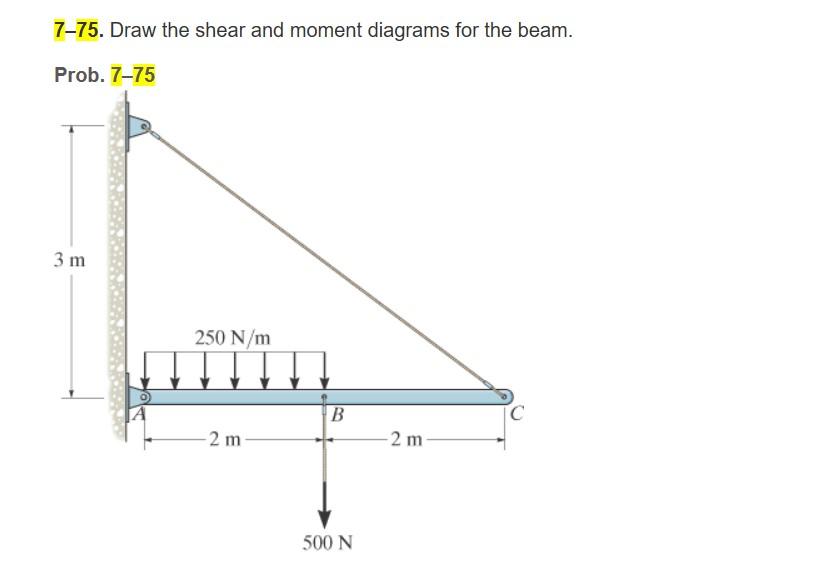

This Problem Is Based On The Figure For Problem 7 75 Determine The Reactions This Also Implies Determining The Tensi 1 (23.63 KiB) Viewed 12 times
7-75. Draw the shear and moment diagrams for the beam. Prob. 7-75 3 m 250 N/m B с -2 m -2 m 500 N
