In an epicyclic gear train shown in Fig 15.46 the arm A is fixed to shaft S. The wheel B having 90 teeth rotates freely

Post by answerhappygod »

In An Epicyclic Gear Train Shown In Fig 15 46 The Arm A Is Fixed To Shaft S The Wheel B Having 90 Teeth Rotates Freely 1
In An Epicyclic Gear Train Shown In Fig 15 46 The Arm A Is Fixed To Shaft S The Wheel B Having 90 Teeth Rotates Freely 1 (114.89 KiB) Viewed 47 times

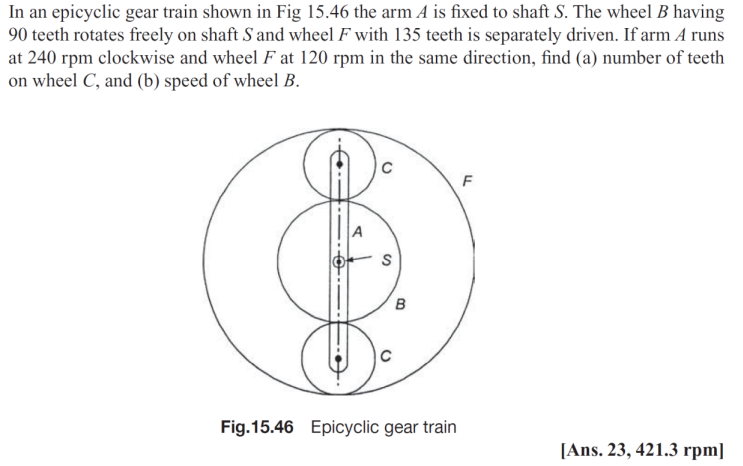

In an epicyclic gear train shown in Fig 15.46 the arm A is fixed to shaft S. The wheel B having 90 teeth rotates freely on shaft Sand wheel F with 135 teeth is separately driven. If arm A runs at 240 rpm clockwise and wheel F at 120 rpm in the same direction, find (a) number of teeth on wheel C, and (b) speed of wheel B. F S B Fig. 15.46 Epicyclic gear train [Ans. 23, 421.3 rpm]
