In an epicyclic gear train shown in Fig.15.45 the number of teeth on gears A, B and C are 50, 25 and 55 respectively. Th

Post by answerhappygod »

In An Epicyclic Gear Train Shown In Fig 15 45 The Number Of Teeth On Gears A B And C Are 50 25 And 55 Respectively Th 1
In An Epicyclic Gear Train Shown In Fig 15 45 The Number Of Teeth On Gears A B And C Are 50 25 And 55 Respectively Th 1 (115.64 KiB) Viewed 13 times

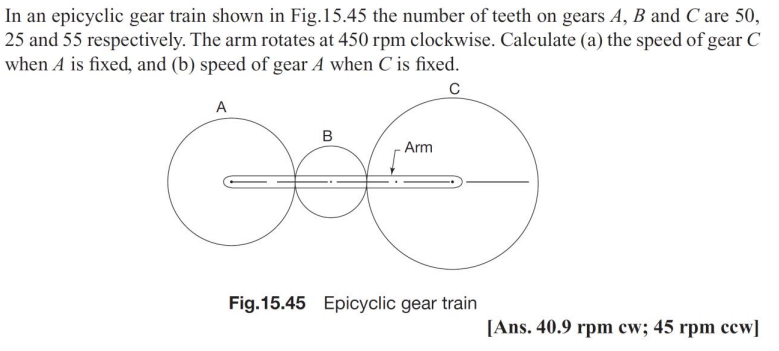

In an epicyclic gear train shown in Fig.15.45 the number of teeth on gears A, B and C are 50, 25 and 55 respectively. The arm rotates at 450 rpm clockwise. Calculate (a) the speed of gear C when A is fixed, and (b) speed of gear A when C is fixed. с А B Arm Ooo Fig. 15.45 Epicyclic gear train [Ans. 40.9 rpm cw; 45 rpm cew]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
