It is considered pumping water from one tank to another elevated tank, both tanks open to the atmosphere as
Is shown in the figure below. In addition to the tanks, the system includes a total pipe length of 90m of
New commercial steel of 15cm in diameter, two threaded regular elbows ("threaded"), a single valve
Step and a bomb. The system must produce a flow of 40 L/s. Determine: (a) the speed of the fluid in the pipe,
(B) the number of Re, (c) the friction factor f using the formula provided, (d) the height equivalent to the pump
It must replace the system

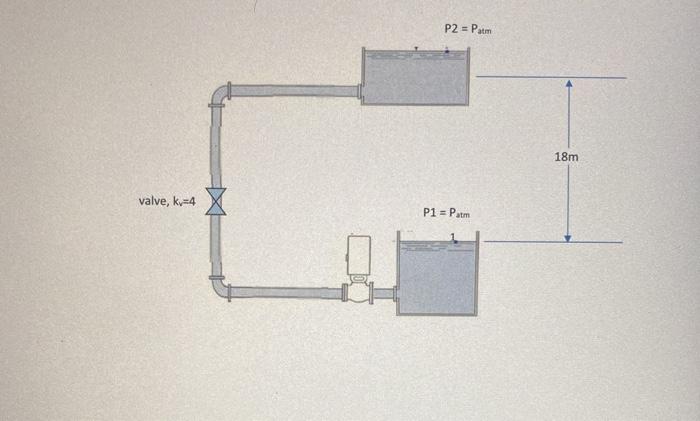

It Is Considered Pumping Water From One Tank To Another Elevated Tank Both Tanks Open To The Atmosphere As Is Shown In 1 (32.89 KiB) Viewed 7 times
P2 = Patm 18m valve, kv=4 P1 = Putm
