7-77. The pin-connected rigid rods AB and BC are inclined at @= 30° when they are unloaded. When the force P is applied

Post by answerhappygod »

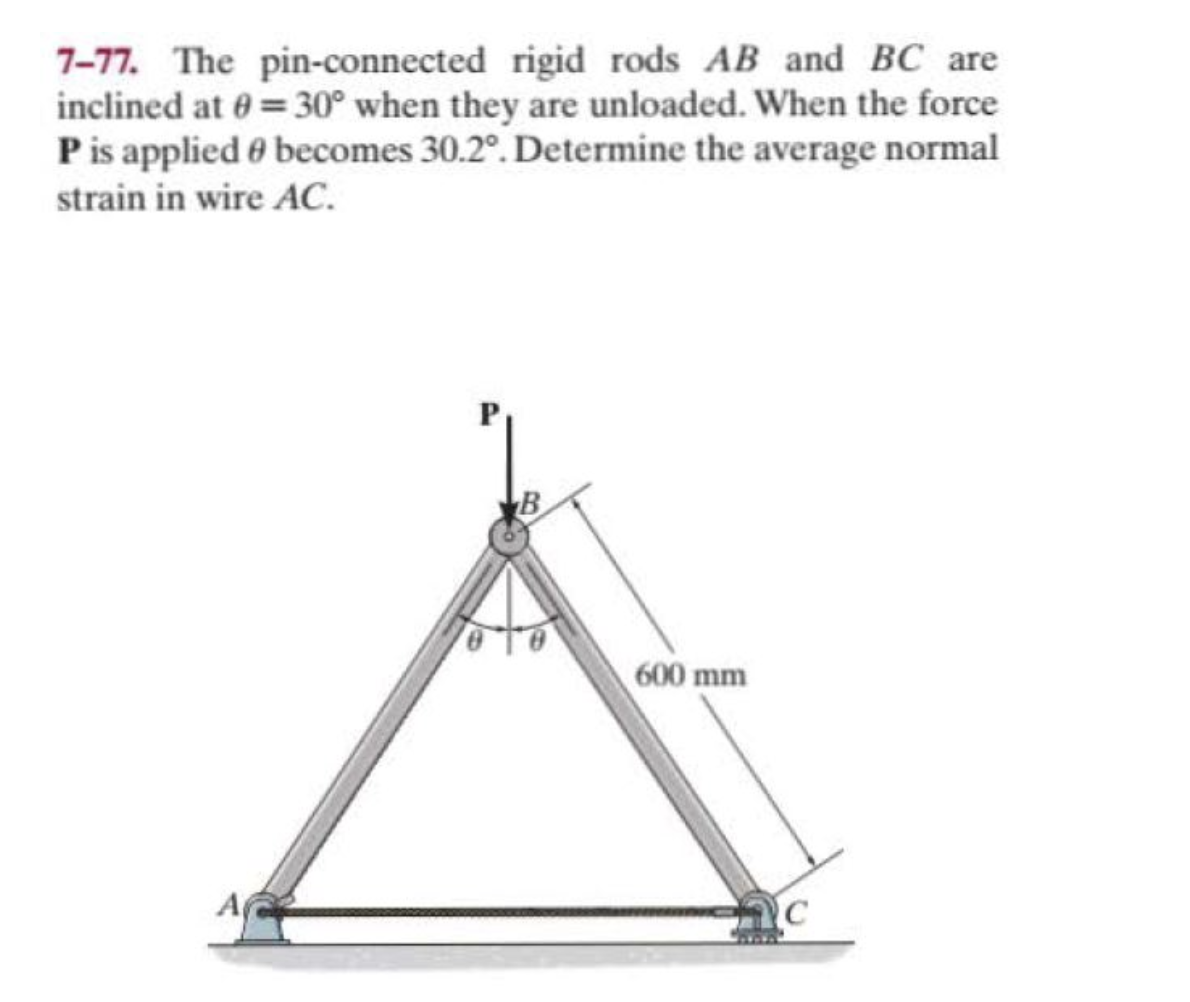

7 77 The Pin Connected Rigid Rods Ab And Bc Are Inclined At 30 When They Are Unloaded When The Force P Is Applied 1
7 77 The Pin Connected Rigid Rods Ab And Bc Are Inclined At 30 When They Are Unloaded When The Force P Is Applied 1 (347.65 KiB) Viewed 17 times
7-77. The pin-connected rigid rods AB and BC are inclined at @= 30° when they are unloaded. When the force P is applied o becomes 30.2°. Determine the average normal strain in wire AC. 600 mm A с
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
