The 1-in.-diameter rod is subjected to the loads shown. Determine the state of stress of point C. Point C is located on

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

The 1-in.-diameter rod is subjected to the loads shown. Determine the state of stress of point C. Point C is located on

Post by answerhappygod »

The 1 In Diameter Rod Is Subjected To The Loads Shown Determine The State Of Stress Of Point C Point C Is Located On 1
The 1 In Diameter Rod Is Subjected To The Loads Shown Determine The State Of Stress Of Point C Point C Is Located On 1 (17.3 KiB) Viewed 25 times

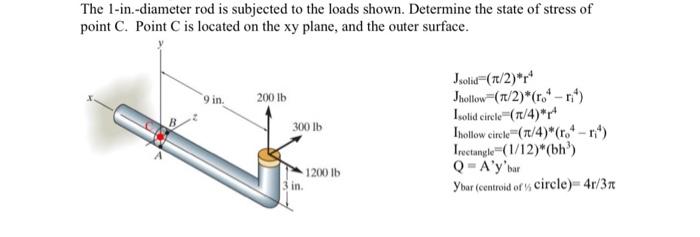

The 1-in.-diameter rod is subjected to the loads shown. Determine the state of stress of point C. Point C is located on the xy plane, and the outer surface. 200 16 300 lb Jsolid (1/2)*r* Jhollow=(1/2)*(r.* -ri") Isolid circle(t/4)** Ihollow circle= (1/4)*(r.1-14) Irectangle =(1/12)*(bh) Q-A'y'bar Ybar (centroid of circle)- 4r/37 1200 lb 3 in.
