Question one: A shaft has a nominal diameter of 55 mm is to be assembled with a gear hub system with force fit , the gea

Post by answerhappygod »

Question One A Shaft Has A Nominal Diameter Of 55 Mm Is To Be Assembled With A Gear Hub System With Force Fit The Gea 1
Question One A Shaft Has A Nominal Diameter Of 55 Mm Is To Be Assembled With A Gear Hub System With Force Fit The Gea 1 (144.88 KiB) Viewed 10 times

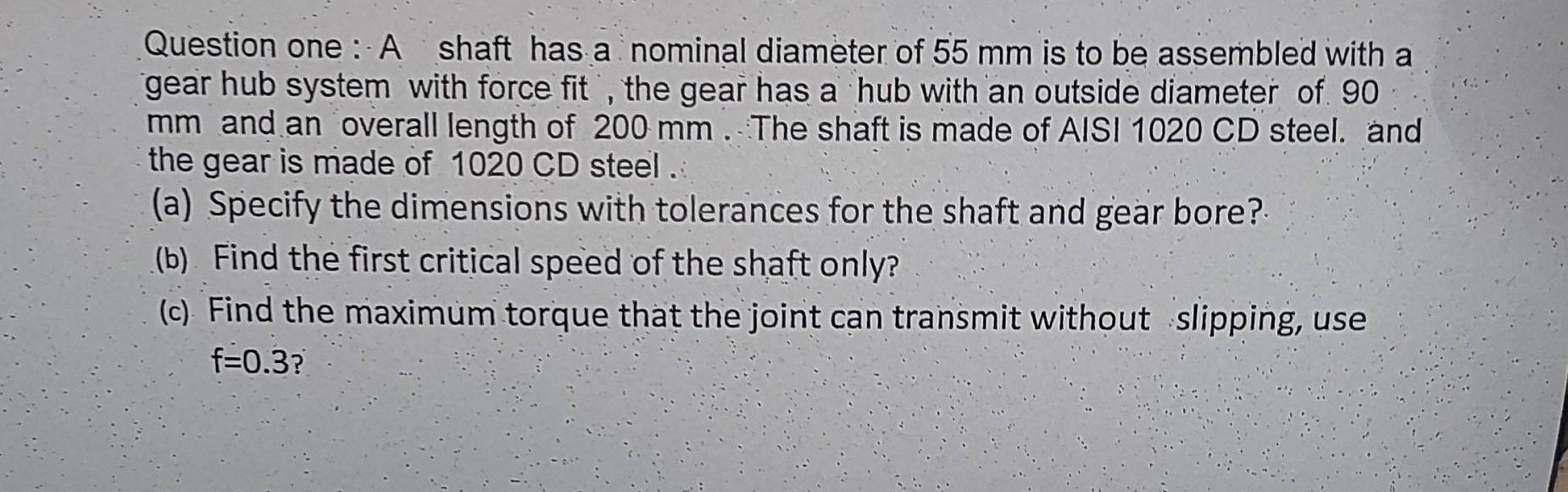

Question one: A shaft has a nominal diameter of 55 mm is to be assembled with a gear hub system with force fit , the gear has a hub with an outside diameter of 90 mm and an overall length of 200 mm . The shaft is made of AISI 1020 CD steel. and the gear is made of 1020 CD steel. (a) Specify the dimensions with tolerances for the shaft and gear bore? (b) Find the first critical speed of the shaft only? (c) Find the maximum torque that the joint can transmit without slipping, use f=0.37
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
