Problem 5 (70 points) The Mohr's circle for the tile shown in Figure 1, is located in Figure 2. 20p = 45 degrees. Point

[answerhappygod]

Problem 5 70 Points The Mohr S Circle For The Tile Shown In Figure 1 Is Located In Figure 2 20p 45 Degrees Point 1 (37.01 KiB) Viewed 6 times

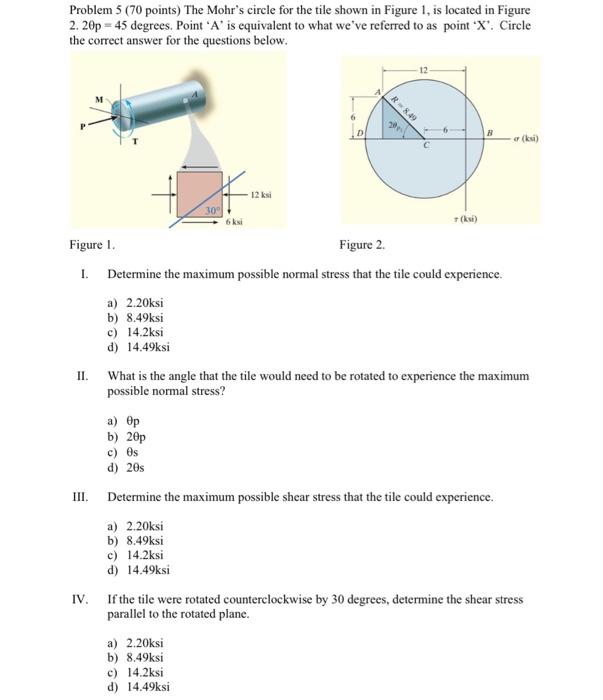

Problem 5 (70 points) The Mohr's circle for the tile shown in Figure 1, is located in Figure 2. 20p = 45 degrees. Point 'A' is equivalent to what we've referred to as point X'. Circle the correct answer for the questions below. 6 R8.49 DO D 6 (ksi) C 12 ksi 30 6 ksi (ks) Figure 1. Figure 2. 1. Determine the maximum possible normal stress that the tile could experience. a) 2.20ksi b) 8.49ksi c) 14.2ksi d) 14.49ksi II. What is the angle that the tile would need to be rotated to experience the maximum possible normal stress? III. a) Op b) 20p c) Os d) 20s Determine the maximum possible shear stress that the tile could experience. a) 2.20ksi b) 8.49ksi c) 14.2ksi d) 14.49ksi IV. If the tile were rotated counterclockwise by 30 degrees, determine the shear stress parallel to the rotated plane. a) 2.20ksi b) 8.49ksi c) 14.2ksi d) 14.49ksi
