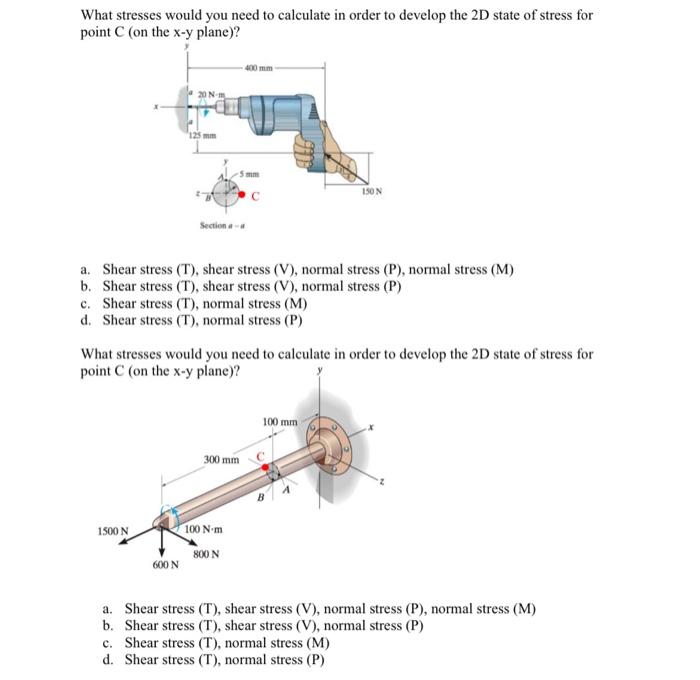

What stresses would you need to calculate in order to develop the 2D state of stress for point C (on the x-y plane)? 20

[answerhappygod]

What Stresses Would You Need To Calculate In Order To Develop The 2d State Of Stress For Point C On The X Y Plane 20 1 (39.74 KiB) Viewed 13 times

What stresses would you need to calculate in order to develop the 2D state of stress for point C (on the x-y plane)? 20 Nm 125 mm 150 N a. Shear stress (T), shear stress (V), normal stress (P), normal stress (M) b. Shear stress (T), shear stress (V), normal stress (P) c. Shear stress (T), normal stress (M) d. Shear stress (T), normal stress (P) What stresses would you need to calculate in order to develop the 2D state of stress for point C (on the x-y plane)? 100 mm 300 mm 1500 N 100 Nm 800 N 600 N a. Shear stress (T), shear stress (V), normal stress (P), normal stress (M) b. Shear stress (T), shear stress (V), normal stress (P) c. Shear stress (T), normal stress (M) d. Shear stress (T), normal stress (P)
