If the frictional moment at the pivot O is 3 N-m in the clockwise direction, determine the tensions in the two cables wh

Post by answerhappygod »

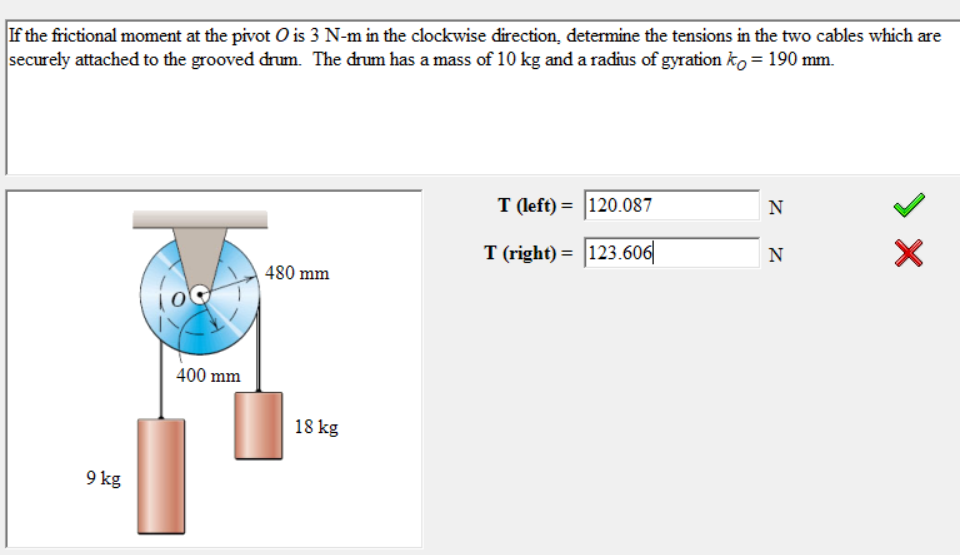

If The Frictional Moment At The Pivot O Is 3 N M In The Clockwise Direction Determine The Tensions In The Two Cables Wh 1
If The Frictional Moment At The Pivot O Is 3 N M In The Clockwise Direction Determine The Tensions In The Two Cables Wh 1 (89.03 KiB) Viewed 10 times
If the frictional moment at the pivot O is 3 N-m in the clockwise direction, determine the tensions in the two cables which are securely attached to the grooved drum. The drum has a mass of 10 kg and a radius of gyration ko = 190 mm. T (left) = 120.087 N Z Z T (right) = 123.606 N X 480 mm 400 mm 18 kg 9 kg
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
