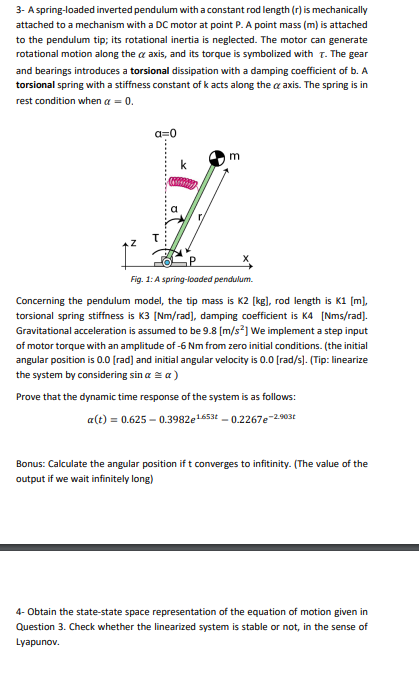

3- A spring-loaded inverted pendulum with a constant rod length (r) is mechanically attached to a mechanism with a DC motor at point P.A point mass (m) is attached to the pendulum tip; its rotational inertia is neglected. The motor can generate rotational motion along the a axis, and its torque is symbolized with t. The gear and bearings introduces a torsional dissipation with a damping coefficient of b. A torsional spring with a stiffness constant of k acts along the a axis. The spring is in rest condition when a = 0. a=0 m a T z Fig. 1: A spring-loaded pendulum. Concerning the pendulum model, the tip mass is K2 [kg], rod length is K1 (m), torsional spring stiffness is K3 [Nm/rad), damping coefficient is K4 [Nms/rad). Gravitational acceleration is assumed to be 9.8 [m/s] We implement a step input of motor torque with an amplitude of-6 Nm from zero initial conditions. (the initial angular position is 0.0 (rad) and initial angular velocity is 0.0 (rad/s]. (Tip: linearize the system by considering sin a a) Prove that the dynamic time response of the system is as follows: a(t) = 0.625 -0.3982e16534 -0.2267e-2.9036 Bonus: Calculate the angular position ift converges to infitinity. (The value of the output if we wait infinitely long) 4- Obtain the state-state space representation of the equation of motion given in Question 3. Check whether the linearized system is stable or not, in the sense of Lyapunov.
