Question 2 (2%) Analyze the drainage connection for the three WCs given below. Given that the drains are 100 mm in diame

[answerhappygod]

Question 2 2 Analyze The Drainage Connection For The Three Wcs Given Below Given That The Drains Are 100 Mm In Diame 1 (62.53 KiB) Viewed 6 times

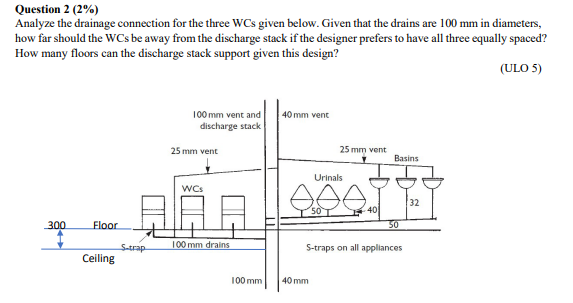

Question 2 (2%) Analyze the drainage connection for the three WCs given below. Given that the drains are 100 mm in diameters, how far should the WCs be away from the discharge stack if the designer prefers to have all three equally spaced? How many floors can the discharge stack support given this design? (ULO 5) 40 mm vent 100 mm vent and discharge stack 25 mm vent 25 mm vent Basins Urinals WCS 32 BA 50 40 300 Floor 50 100mm drains S-traps on all appliances Strap Ceiling 100 mm 40 mm
