Question 2: A simply supported W 360 x 39 steel beam with an overhang supports a uniformelye 120 marks] distributed load

[answerhappygod]

Question 2 A Simply Supported W 360 X 39 Steel Beam With An Overhang Supports A Uniformelye 120 Marks Distributed Load 1 (61.5 KiB) Viewed 25 times

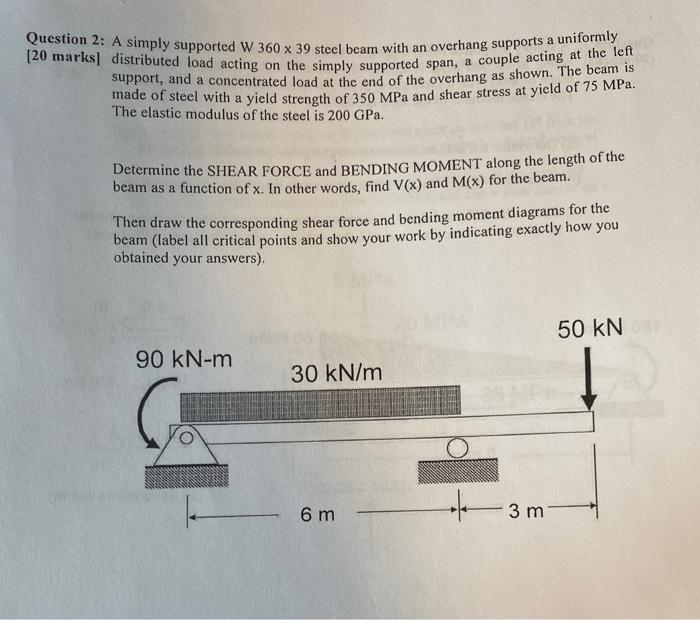

Question 2: A simply supported W 360 x 39 steel beam with an overhang supports a uniformelye 120 marks] distributed load acting on the simply supported span, a couple acting at the heis support, and a concentrated load at the end of the overhang as shown. The beam is made of steel with a yield strength of 350 MPa and shear stress at yield of 75 MPa. The elastic modulus of the steel is 200 GPa. Determine the SHEAR FORCE and BENDING MOMENT along the length of the beam as a function of x. In other words, find V(x) and M(x) for the beam. Then draw the corresponding shear force and bending moment diagrams for the beam (label all critical points and show your work by indicating exactly how you obtained your answers). 50 KN 90 kN-m 30 kN/m 6 m 3 m 3
