(a) Calculate the moment, M, required to keep the gate in the dam wall illustrated in Fig Q5.1 below closed. 2m М. 5m F

Post by answerhappygod »

1
1 (48.87 KiB) Viewed 33 times

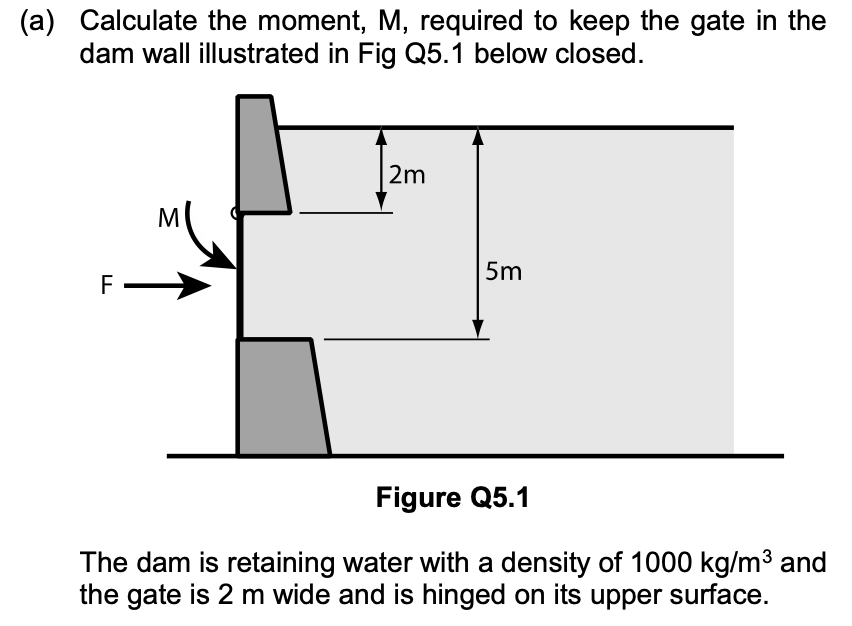

(a) Calculate the moment, M, required to keep the gate in the dam wall illustrated in Fig Q5.1 below closed. 2m М. 5m F Figure Q5.1 The dam is retaining water with a density of 1000 kg/m3 and the gate is 2 m wide and is hinged on its upper surface.
