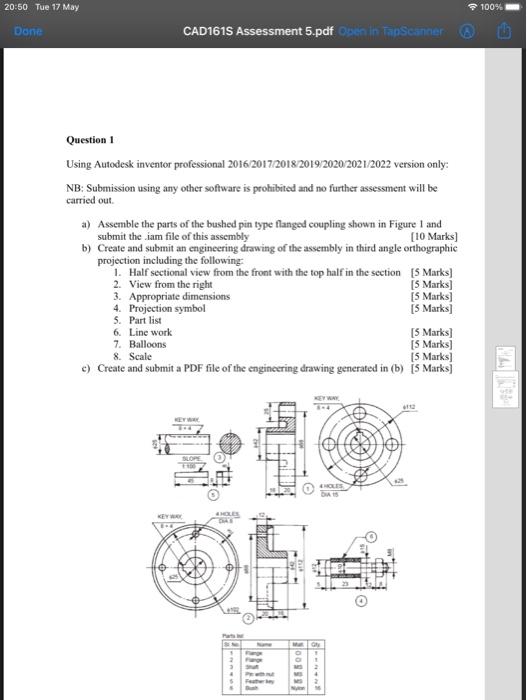

20:50 Tue 17 May 100% Done CAD1615 Assessment 5.pdf Open in TapScanner@ ch Question 1 Using Autodesk inventor professional 2016/2017/2018/2019/2020/2021/2022 version only: NB: Submission using any other software is prohibited and no further assessment will be carried out a) Assemble the parts of the bushed pin type flanged coupling shown in Figure I and submit the .iam file of this assembly [10 Marks) b) Create and submit an engineering drawing of the assembly in third angle orthographie projection including the following: 1. Half sectional view from the front with the top half in the section [ Marks] 2. View from the right [5 Marks] 3. Appropriate dimensions [5 Marks 4. Projection symbol [5 Marks) 5. Part list 6. Line work [5 Marks) 7. Balloons 15 Marks) 8. Scale [5 Marks] c) Create and submit a PDF file of the engineering drawing generated in (b) is Marks Of CHES DAS U IN IN S0999 5
