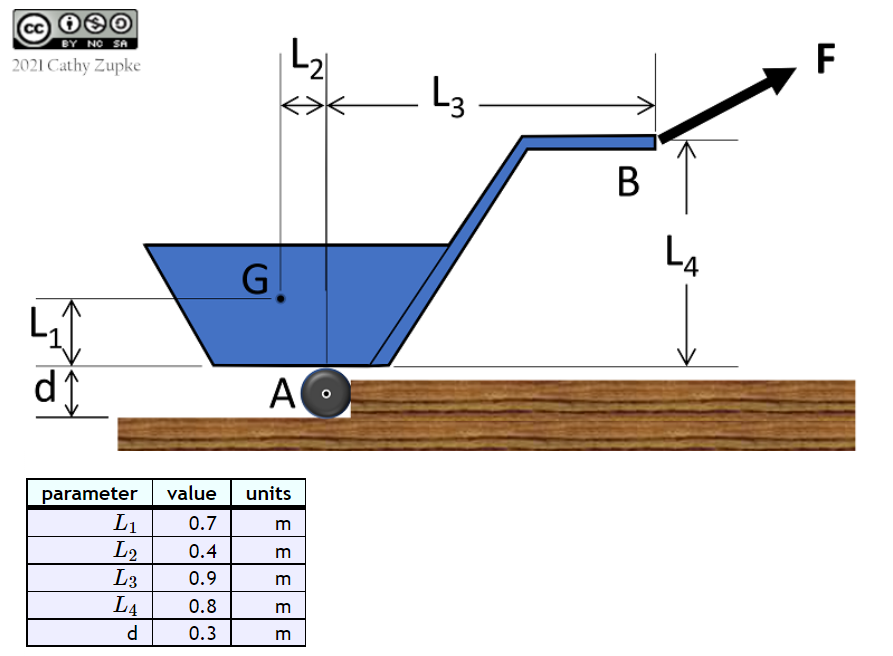

The 70 kg two-wheeled cart is described in the figure and
parameter table below, with G indicating the location of the center
of gravity. It is to be pulled so that it goes up the small step.
Find the normal force on each wheel, and the magnitude and
direction of the force F→ applied at handle.
HINT: remember that there are two wheels sharing the load.
For the answers, take to the right and up to be the positive
directions.
The normal force at each wheel at A in the x direction is
Ax=____________________ N
The magnitude of the force at B is |F→|= _______________N
Measured from the positive horizontal axis, the angle of F→=
_______________°
The 70 Kg Two Wheeled Cart Is Described In The Figure And Parameter Table Below With G Indicating The Location Of The C 1 (156.11 KiB) Viewed 9 times
BY NG SA 2021 Cathy Zupke F Lal <>k L3 B L4 G L21 d1 AO parameter L1 L2 L3 L4 d value 0.7 0.4 0.9 0.8 0.3 units m m m EEEEE m m
