Question 3 A 1.75 kg/s flow of moist air at 1.013 bar, 35 °C and a relative humidity of 60 % is cooled to 10 °C and then

[answerhappygod]

Question 3 A 1 75 Kg S Flow Of Moist Air At 1 013 Bar 35 C And A Relative Humidity Of 60 Is Cooled To 10 C And Then 1 (180.54 KiB) Viewed 7 times

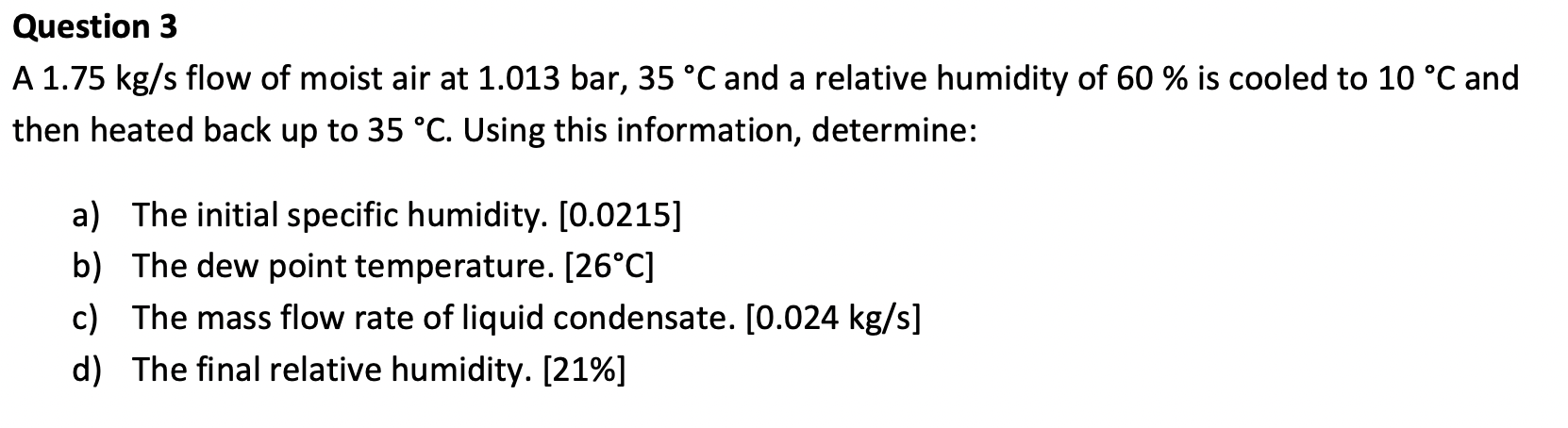

Question 3 A 1.75 kg/s flow of moist air at 1.013 bar, 35 °C and a relative humidity of 60 % is cooled to 10 °C and then heated back up to 35 °C. Using this information, determine: a) The initial specific humidity. [0.0215] b) The dew point temperature. [26°C] c) The mass flow rate of liquid condensate. [0.024 kg/s] d) The final relative humidity. [21%]
