An aluminum pipe is filled in concrete is subjected to a pure compressive force as shown in the figure below. Determine

Post by answerhappygod »

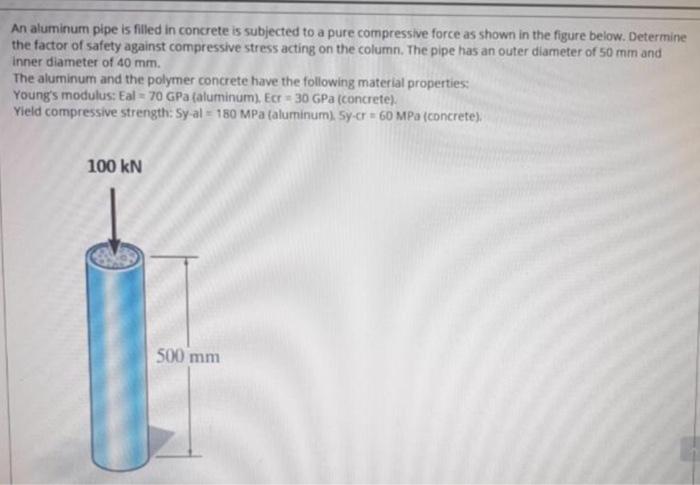

An Aluminum Pipe Is Filled In Concrete Is Subjected To A Pure Compressive Force As Shown In The Figure Below Determine 1
An Aluminum Pipe Is Filled In Concrete Is Subjected To A Pure Compressive Force As Shown In The Figure Below Determine 1 (31.19 KiB) Viewed 8 times
An aluminum pipe is filled in concrete is subjected to a pure compressive force as shown in the figure below. Determine the factor of safety against compressive stress acting on the column. The pipe has an outer diameter of 50 mm and Inner diameter of 40 mm. The aluminum and the polymer concrete have the following material properties Young's modulus: Eal = 70 GPa (aluminum), Egr = 30 GPa (concrete). Yield compressive strength: Sy al = 180 MPa (aluminum). Sy-cr60 MPa (concrete). 100 KN 500 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
