Let's consider a solid circular shaft subjected to the torque loads as shown. Determine the minimum required diameter "D

Post by answerhappygod »

Let S Consider A Solid Circular Shaft Subjected To The Torque Loads As Shown Determine The Minimum Required Diameter D 1
Let S Consider A Solid Circular Shaft Subjected To The Torque Loads As Shown Determine The Minimum Required Diameter D 1 (37.07 KiB) Viewed 16 times

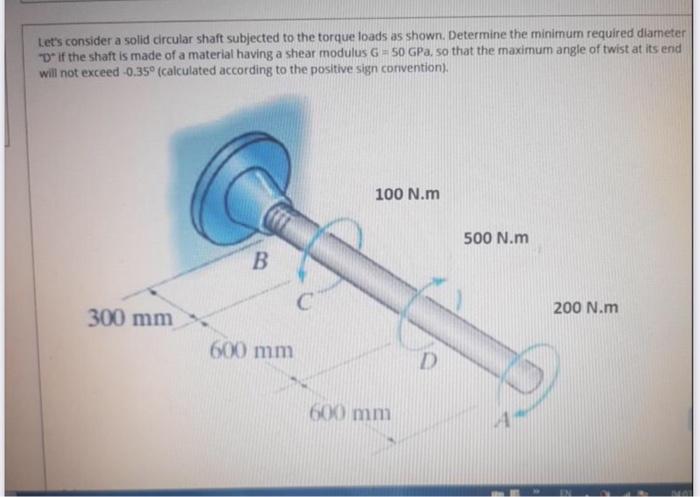

Let's consider a solid circular shaft subjected to the torque loads as shown. Determine the minimum required diameter "D" if the shaft is made of a material having a shear modulus G - 50 GPa, so that the maximum angle of twist at its end will not exceed -0.35° (calculated according to the positive sign convention), 100 N.m 500 N.m B В C 200 N.m 300 mm 600 mm D 600 mm
