ME215 HW#3 (1) determine the force in members CD, CF, and CG and state if these members are in tension or compression. F

[answerhappygod]

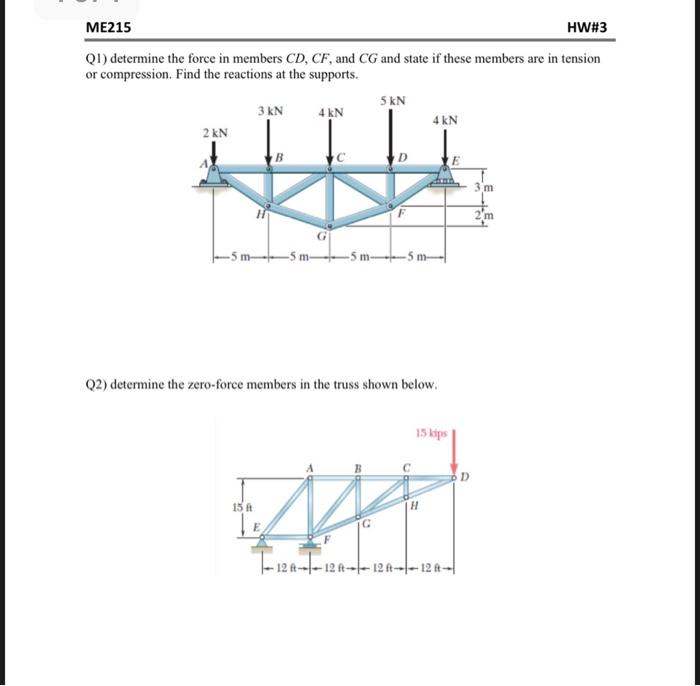

Me215 Hw 3 1 Determine The Force In Members Cd Cf And Cg And State If These Members Are In Tension Or Compression F 1 (29.92 KiB) Viewed 11 times

ME215 HW#3 (1) determine the force in members CD, CF, and CG and state if these members are in tension or compression. Find the reactions at the supports. 5 kN 3 kN 4 kN 4 kN 2 KN B D 3 m -5 mm -5 mm (2) determine the zero-force members in the truss shown below. 15 lips D 15 M H T-120-126-4 126-120-1
