15 Consider the feedback block diagram where (K=4) and (K_1=0.21). Determine steady state response Yss (t) due to unit s
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
15 Consider the feedback block diagram where (K=4) and (K_1=0.21). Determine steady state response Yss (t) due to unit s

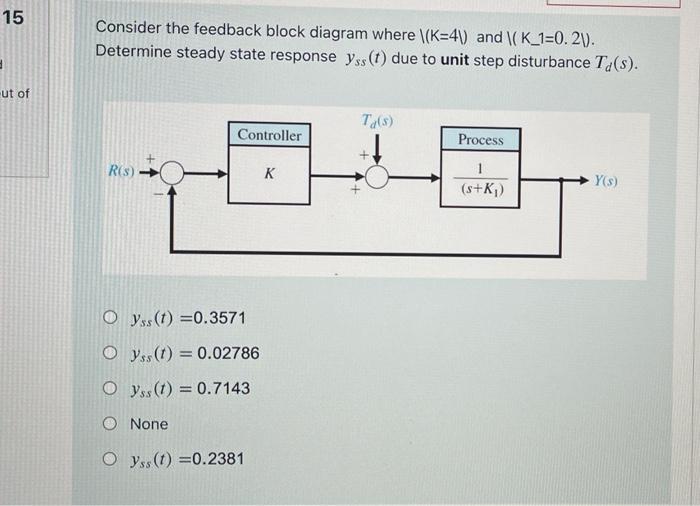

15 Consider the feedback block diagram where (K=4) and (K_1=0.21). Determine steady state response Yss (t) due to unit step disturbance Td(s). ut of Ta(s) Controller Process R(S) K 1 (s+K1) Y(S) Oyss(t) =0.3571 O Yss (t) = 0.02786 Oys(t) = 0.7143 O None O Yss (t) =0.2381
