8. The beam is subjected to the loading shown. a) Determine the reactions at the supports, and use the method of sections to determine the internal shear force and internal bending moment at the cross section at A. 12 KN 2 m ---1m 4 m 300 mm A 200 mm 75 mm

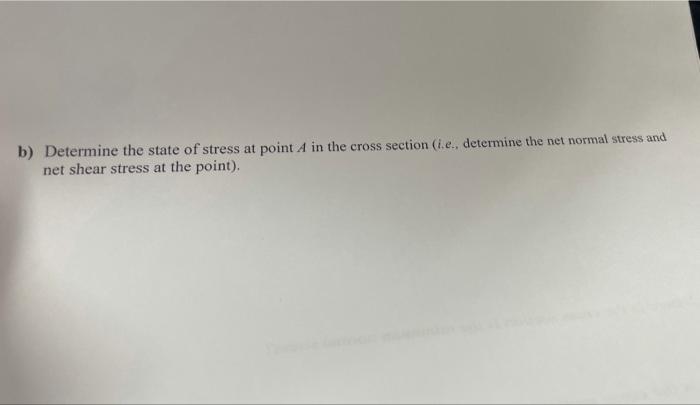

b) Determine the state of stress at point A in the cross section (t.e., determine the net normal stress and net shear stress at the point).
