5. The bearings at A and B exert only vertical reactions on the shaft. a) Determine the reactions at A and B. 1500 N 800

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

5. The bearings at A and B exert only vertical reactions on the shaft. a) Determine the reactions at A and B. 1500 N 800

Post by answerhappygod »

5 The Bearings At A And B Exert Only Vertical Reactions On The Shaft A Determine The Reactions At A And B 1500 N 800 1
5 The Bearings At A And B Exert Only Vertical Reactions On The Shaft A Determine The Reactions At A And B 1500 N 800 1 (21.65 KiB) Viewed 12 times

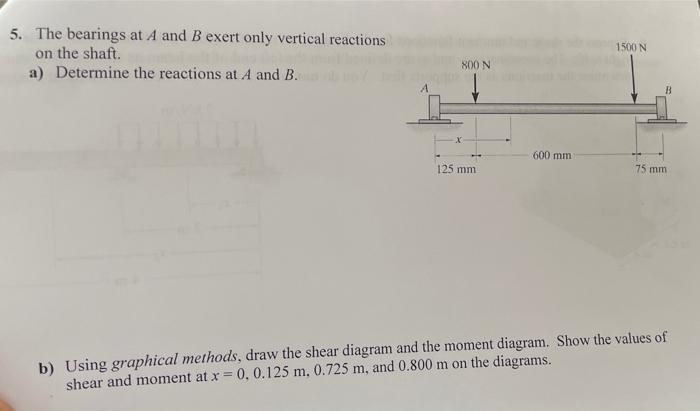

5. The bearings at A and B exert only vertical reactions on the shaft. a) Determine the reactions at A and B. 1500 N 800N 600 mm 125 mm 75 mm b) Using graphical methods, draw the shear diagram and the moment diagram. Show the values of shear and moment at x=0.0.125 m, 0.725 m, and 0.800 m on the diagrams.
