4. The hollow copper pipe has an outer diameter of 2.50 in, and an inner diameter of 2.30 in. a) Determine the maximum shear stress developed in the pipe due to the torsional loadings. Describe specifically where this stress occurs (where along the length and where in the cross section). 450 lbft 350 lb-ft 600 lb-ft

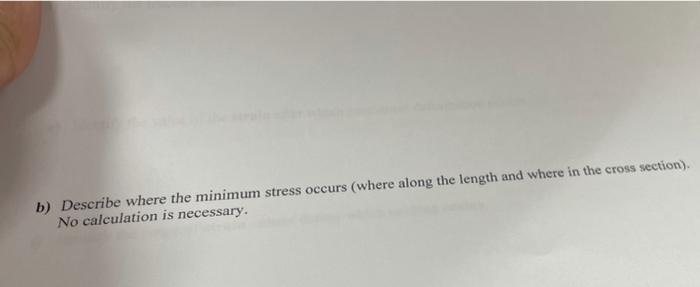

b) Describe where the minimum stress occurs (where along the length and where in the cross section). No calculation is necessary.
