A U-tube manometer is connected to a closed tank containing air and water as shown below. At the closed end of the manom

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

A U-tube manometer is connected to a closed tank containing air and water as shown below. At the closed end of the manom

Post by answerhappygod »

A U Tube Manometer Is Connected To A Closed Tank Containing Air And Water As Shown Below At The Closed End Of The Manom 1
A U Tube Manometer Is Connected To A Closed Tank Containing Air And Water As Shown Below At The Closed End Of The Manom 1 (111.29 KiB) Viewed 53 times

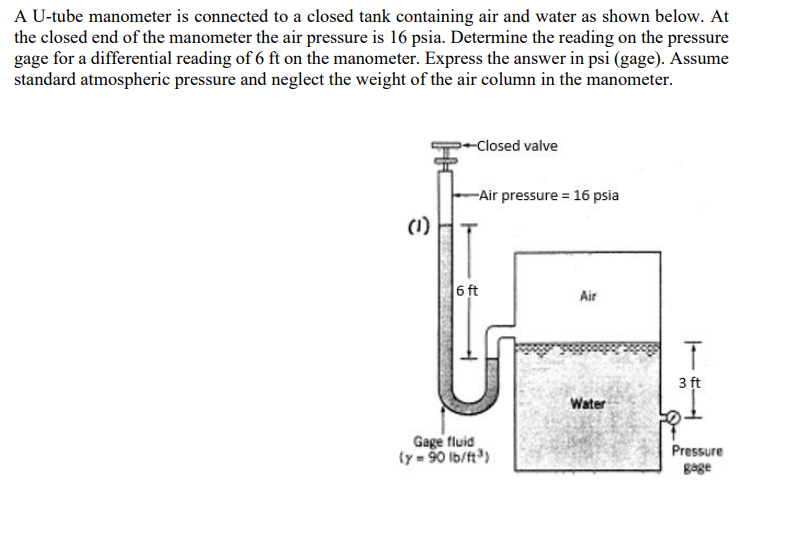

A U-tube manometer is connected to a closed tank containing air and water as shown below. At the closed end of the manometer the air pressure is 16 psia. Determine the reading on the pressure gage for a differential reading of 6 ft on the manometer. Express the answer in psi (gage). Assume standard atmospheric pressure and neglect the weight of the air column in the manometer. -Closed valve -Air pressure = 16 psia 6 ft Air Ī 3 ft 1-1 Water Gege fluid (y = 90 16/11) Pressure gage
