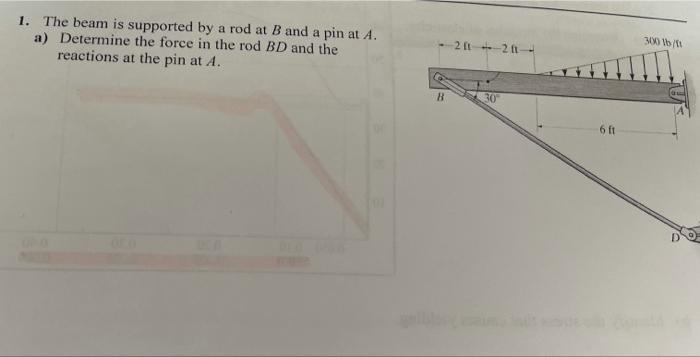

1. The beam is supported by a rod at B and a pin at A. a) Determine the force in the rod BD and the reactions at the pin at A. 2--21 W 1 B 30 6 ft

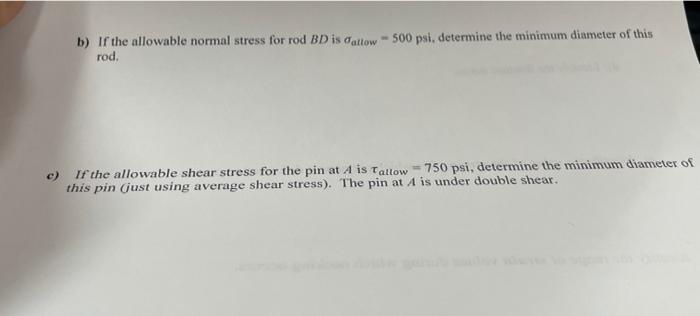

b) If the allowable normal stress for rod BD is attow - 500 psi, determine the minimum diameter of this rod. If the allowable shear stress for the pin at A is Tallow -- 750 psi, determine the minimum diameter of this pin just using average shear stress). The pin at A is under double shear.
