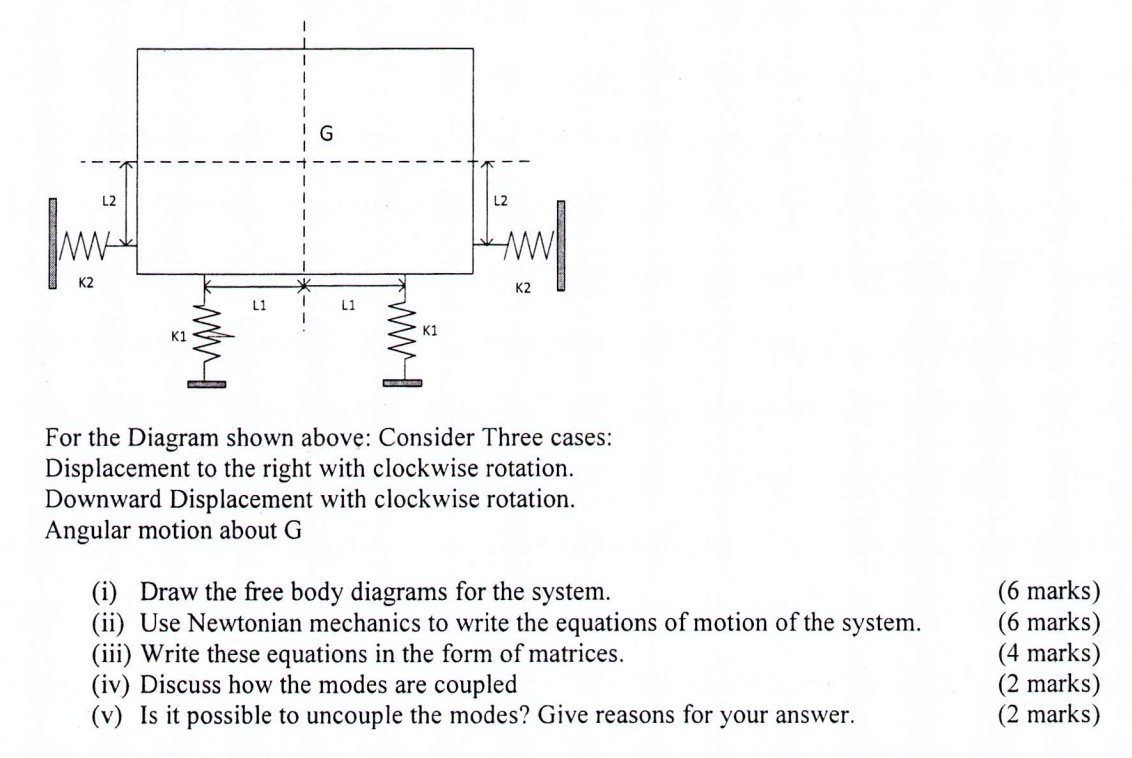

G L2 fu K2 L1 K1 Amino K1 For the Diagram shown above: Consider Three cases: Displacement to the right with clockwise ro

[answerhappygod]

G L2 Fu K2 L1 K1 Amino K1 For The Diagram Shown Above Consider Three Cases Displacement To The Right With Clockwise Ro 1 (504.14 KiB) Viewed 18 times

G L2 fu K2 L1 K1 Amino K1 For the Diagram shown above: Consider Three cases: Displacement to the right with clockwise rotation. Downward Displacement with clockwise rotation. Angular motion about G (i) Draw the free body diagrams for the system. (ii) Use Newtonian mechanics to write the equations of motion of the system. (iii) Write these equations in the form of matrices. (iv) Discuss how the modes are coupled (v) Is it possible to uncouple the modes? Give reasons for your answer. (6 marks) (6 marks) (4 marks) (2 marks) (2 marks)
