A circular bar with 0.5 in radius, 2 ft long, 11,000 ksi of cutting module and 0.098175 in^ of
Polar moment of inertia, it is recessed at one end and is subjected to a torsional moment in the
Free end.
A.
Determine the torsion angle in degrees. (10 pts.)
B.
Determine the maximum shear force. (10 pts

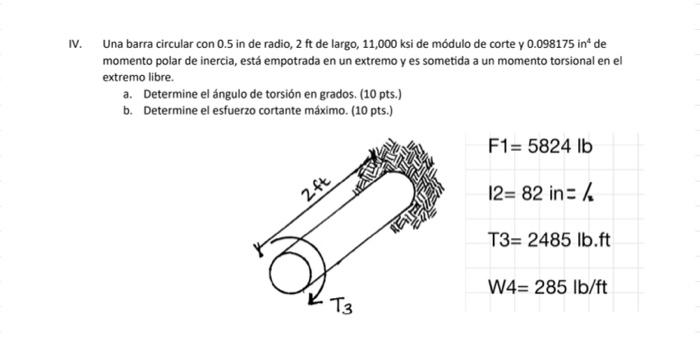

A Circular Bar With 0 5 In Radius 2 Ft Long 11 000 Ksi Of Cutting Module And 0 098175 In Of Polar Moment Of Inertia 1 (23.16 KiB) Viewed 14 times
IV. Una barra circular con 0.5 in de radio, 2ft de largo, 11,000 ksi de módulo de corte y 0.098175 in de momento polar de inercia, está empotrada en un extremo y es sometida a un momento torsional en el extremo libre. a. Determine el ángulo de torsión en grados (10 pts.) b. Determine el esfuerzo cortante máximo. (10 pts.) F1= 5824 lb 2ft 12= 82 inch T3= 2485 lb.ft W4= 285 lb/ft T3
