The BC beam is supported by two pins of 5/8 in diameter, the one on the right holds it from the bar AB. The BC beam has a sectional area of 2.25in^2 and the bar 1.25in^2. F1=2600 pounds(lb).
The BC beam is supported by two pins of 5/8 in diameter, the one on the right holds it from the bar AB. The BC beam has a sectional area of 2.25in^2 and the bar 1.25in^2. F1=2600 pounds(lb).
1. Determine average normal effort in bar AB
2. Determine average shearing effort at pin C

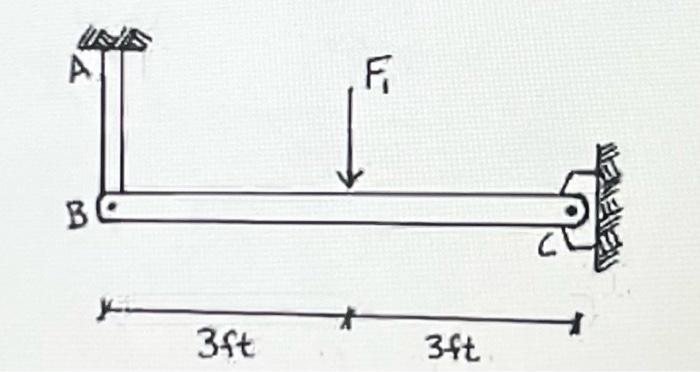

The Bc Beam Is Supported By Two Pins Of 5 8 In Diameter The One On The Right Holds It From The Bar Ab The Bc Beam Has 1 (25.96 KiB) Viewed 17 times
F BO + 3ft 3ft
